How to Set up Jenkins CI/CD Pipeline to Build and Deploy an Angular App from GitHub to Amazon S3

In this article, we are going to cover a Jenkins CI/CD pipeline to build and deploy a angular app from github to amazon s3.

Jenkins is an open-source automation server that is widely used for building, testing, and deploying software projects. It provides a platform for implementing Continuous Integration (CI) and Continuous Deployment (CD) pipelines, allowing developers to automate various stages of the software development lifecycle.

If you would like to follow a video tutorial please use our YouTube video.


GitHub Account: Ensure you have a GitHub account and a repository where your angular project is hosted.
AWS Account: An active AWS account with permissions to create and manage S3 buckets.
AWS S3 Bucket: Create an S3 bucket in your AWS account where you will deploy your project.
Jenkins Server: Install Jenkins on an EC2 instance or server.

Create IAM user

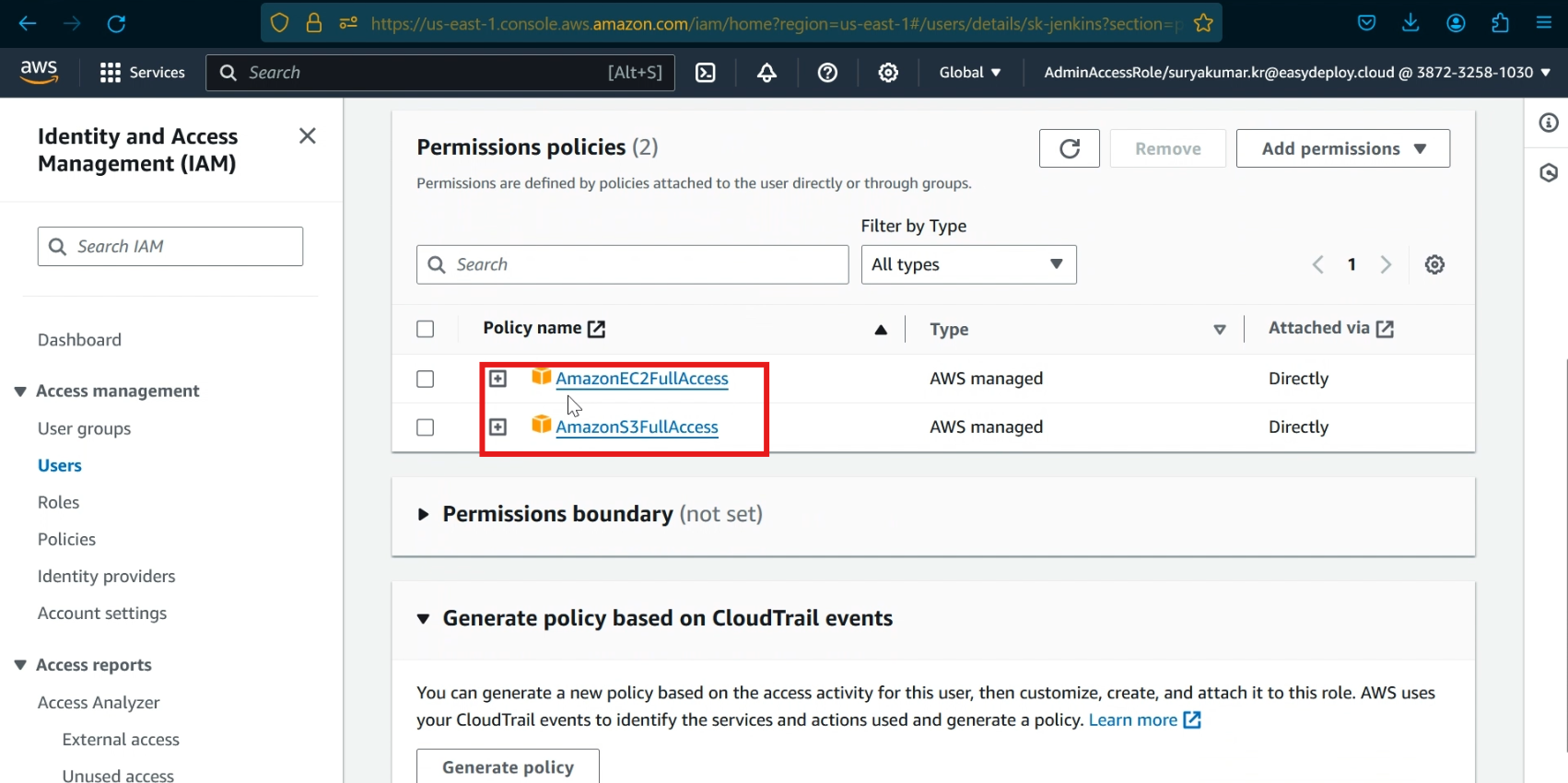

Go to IAM services, create a user with “EC2fullacess” and “S3fullaccess” permission. and download the access key and secret key

IAM user

Setup S3 bucket

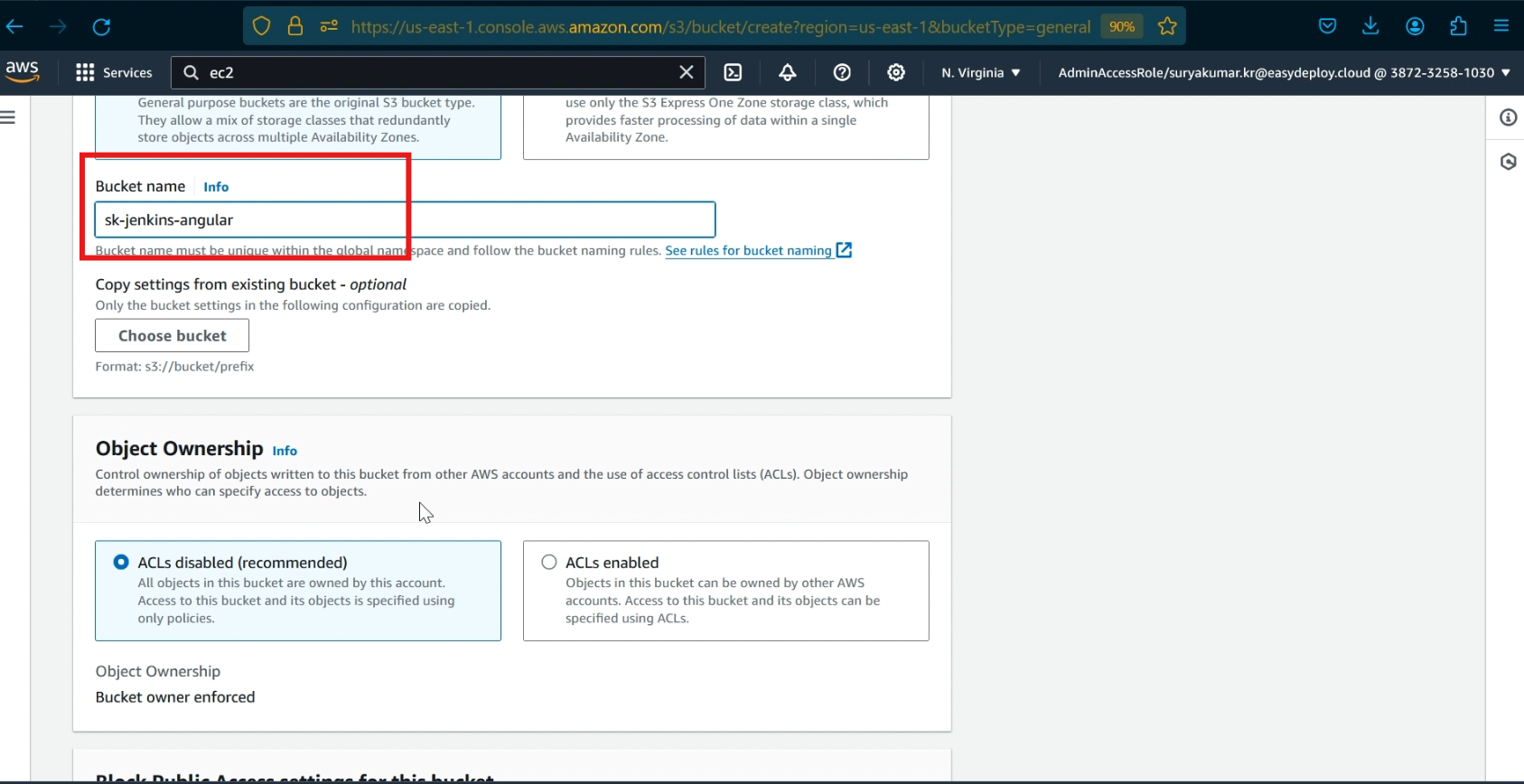

Go to S3 services, click >> create bucket, type >> bucket name

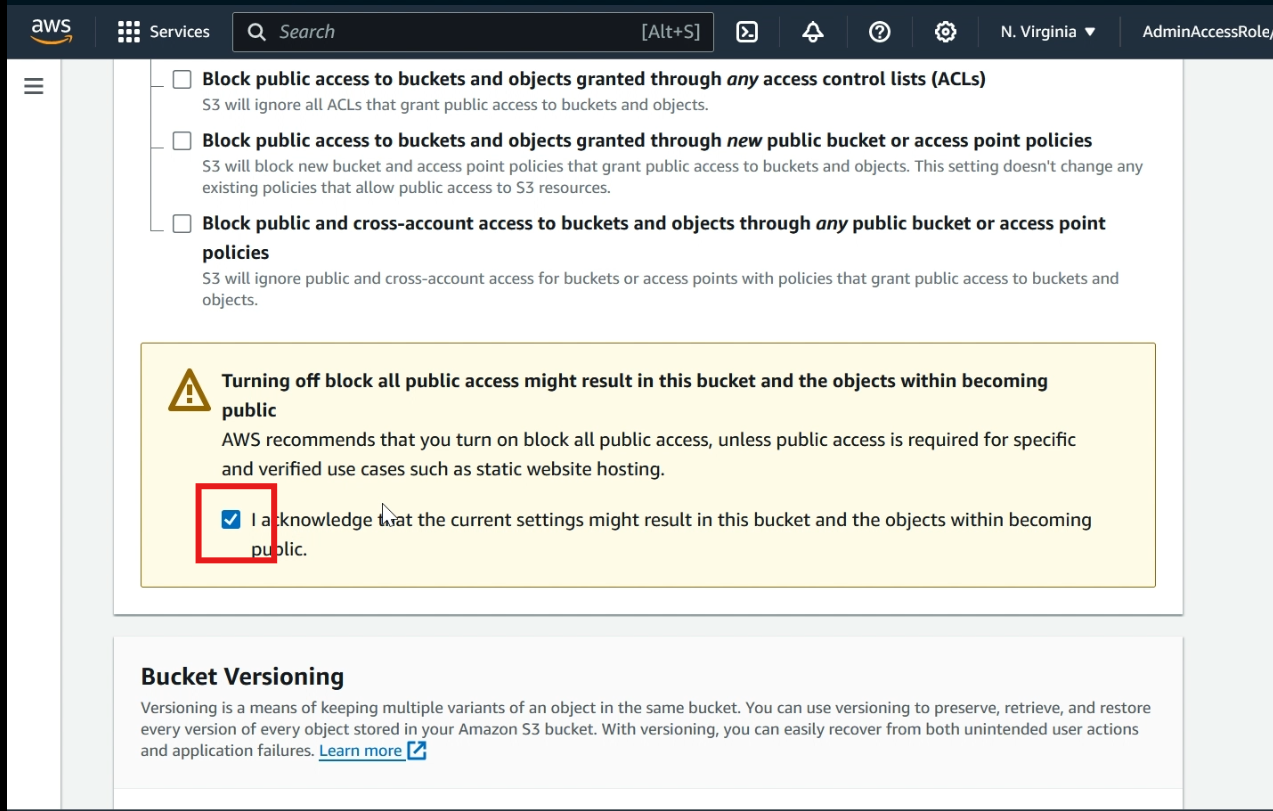

Unselect the >> block all access, select >> acknowledgement, click >> create bucket

S3 bucket

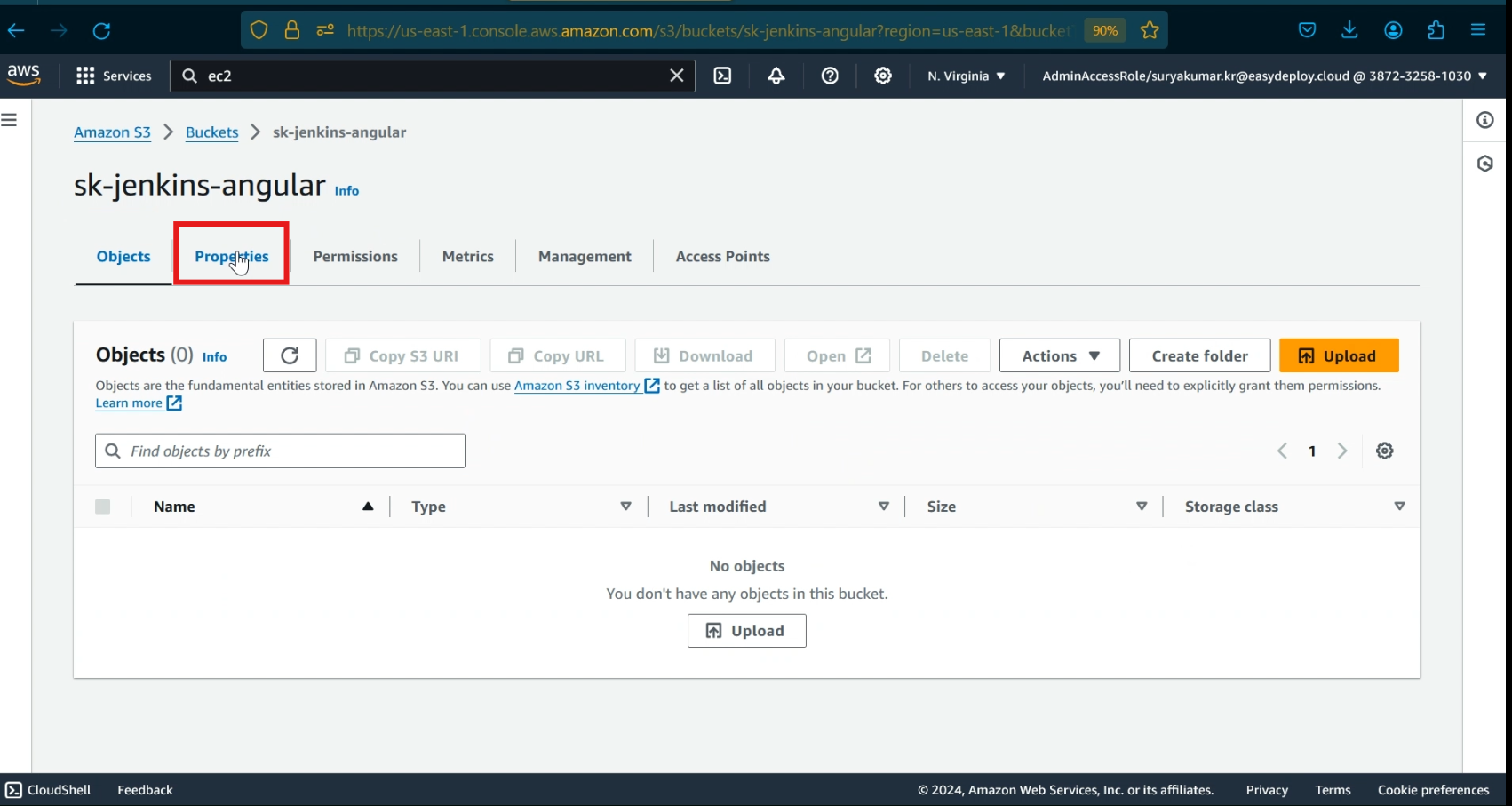

Now we successfully created the bucket, click >> properties

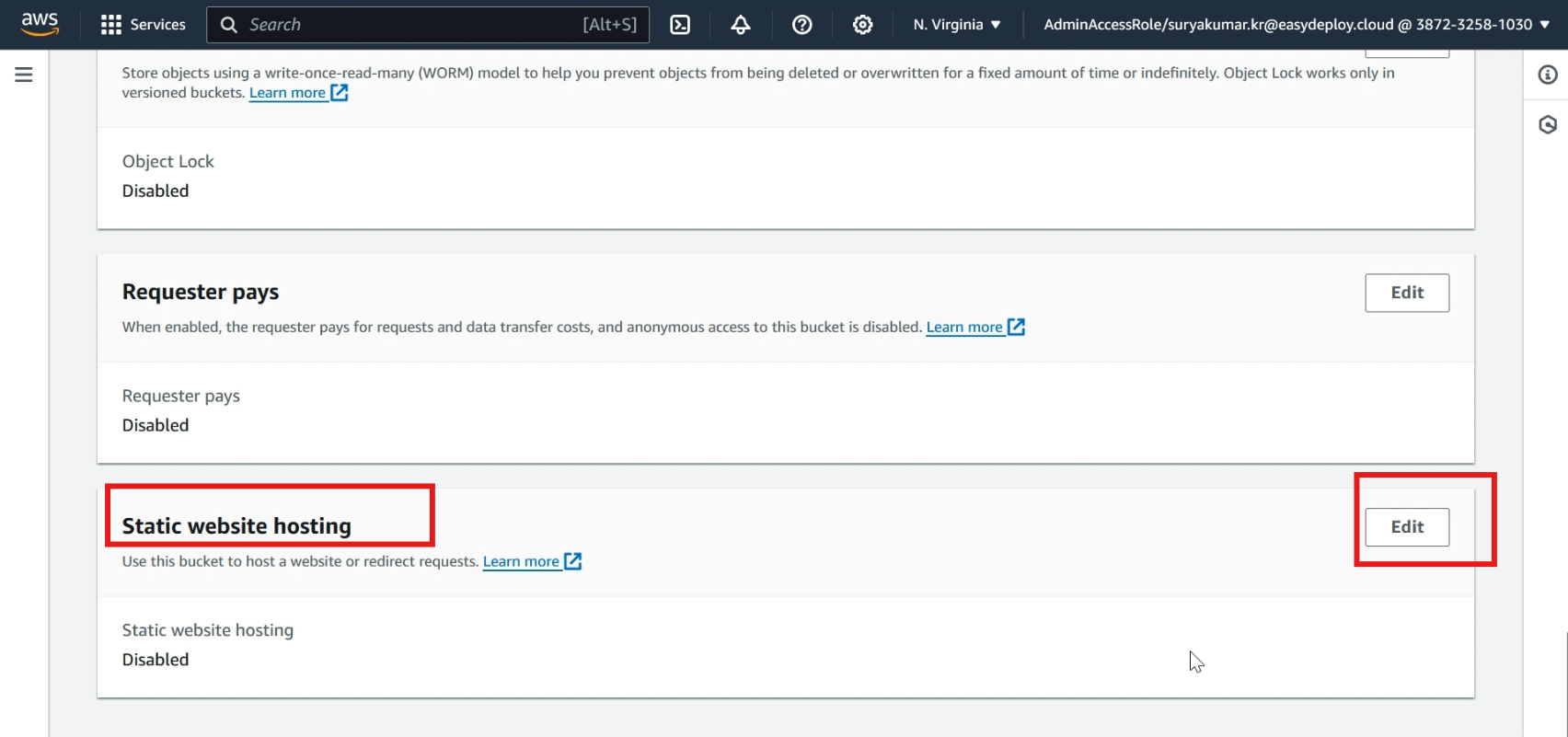

Scroll down to see the static web hosting, click >> edit

static web hosting

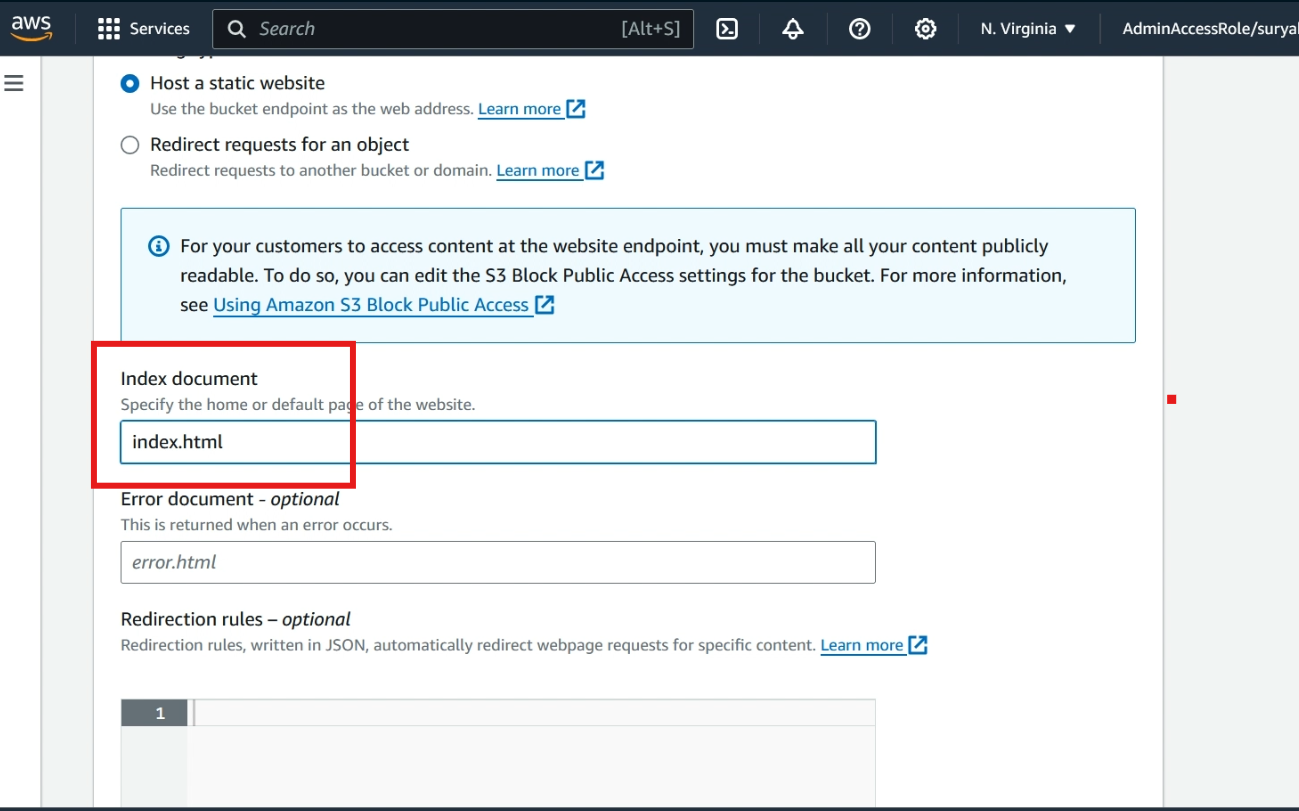

Click >> enable, In index document, type >> “index.html“, click >> save changes

Static web hosting

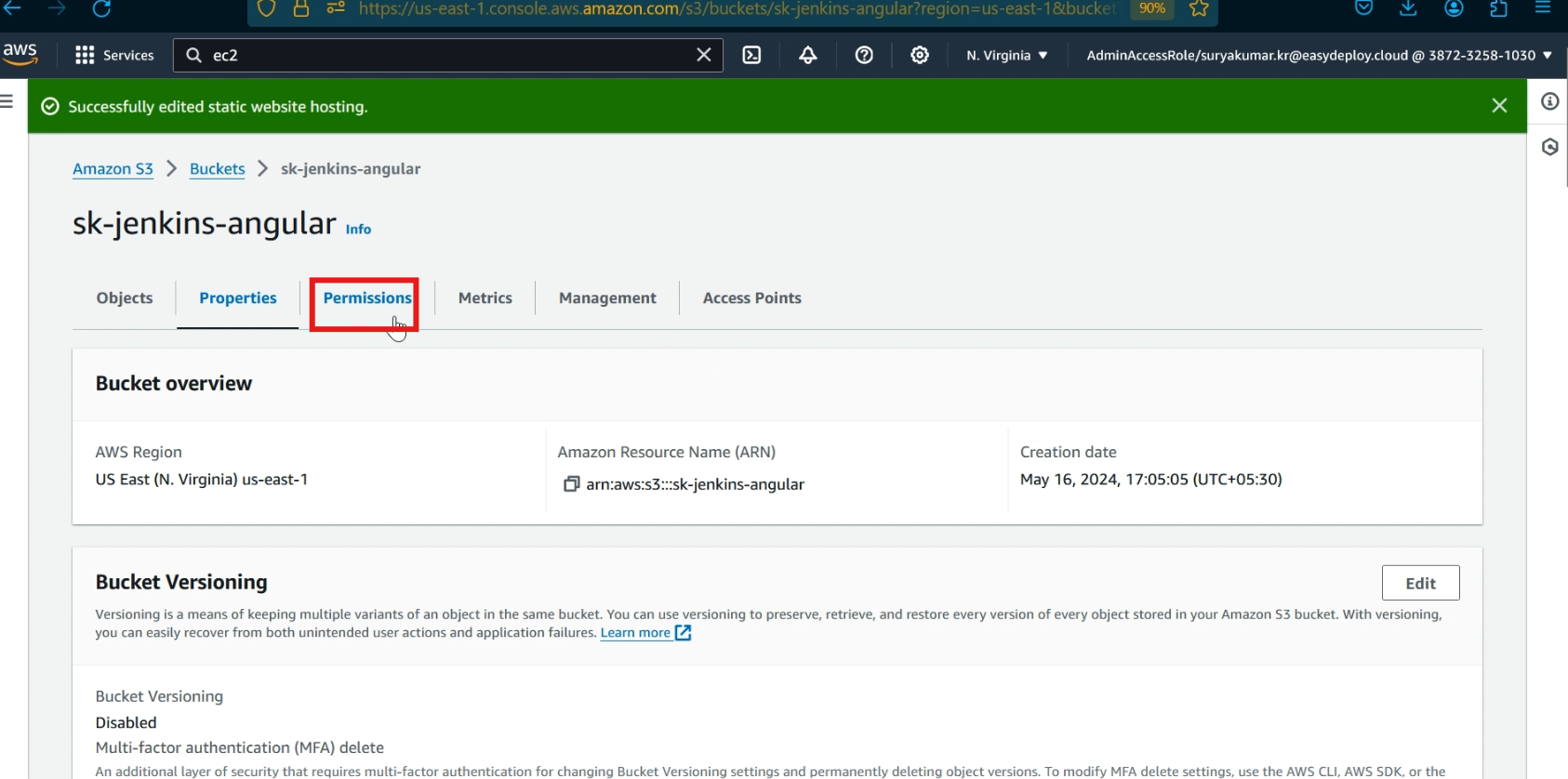

Now click >> permissions

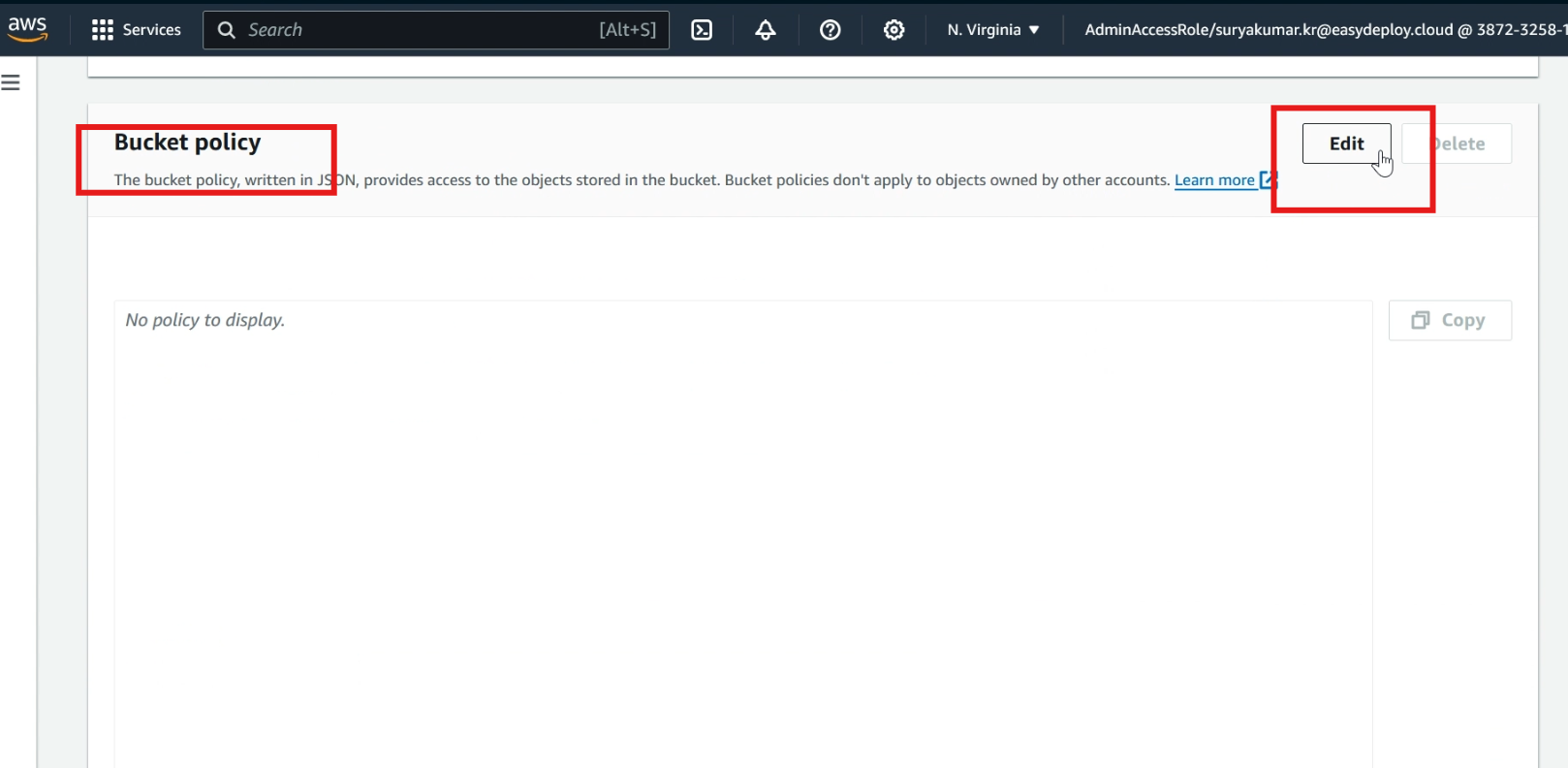

In bucket policy, click >> edit

s3 bucket

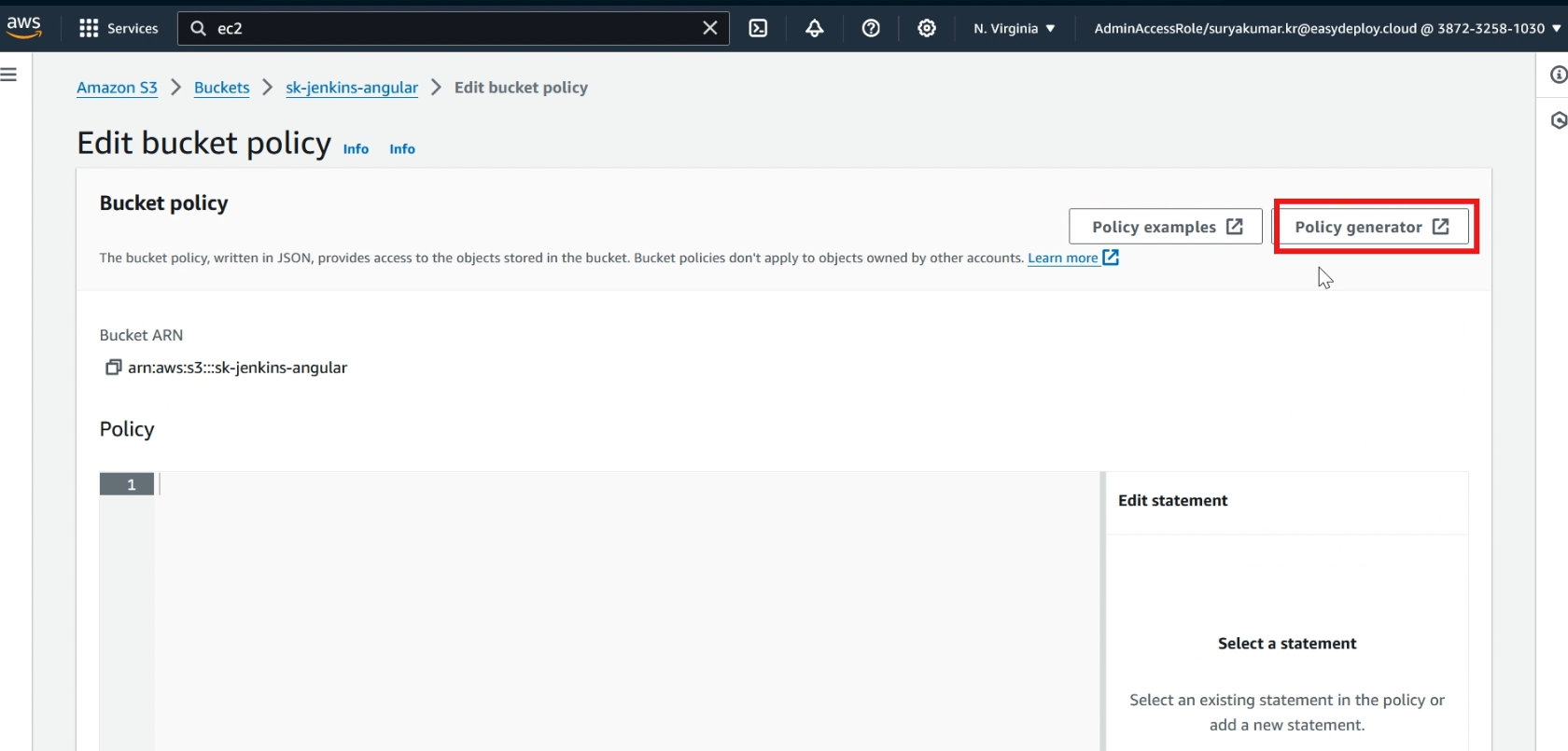

Now click >> policy generator


In step 1 – select a type of policy, choose >> s3 bucket policy

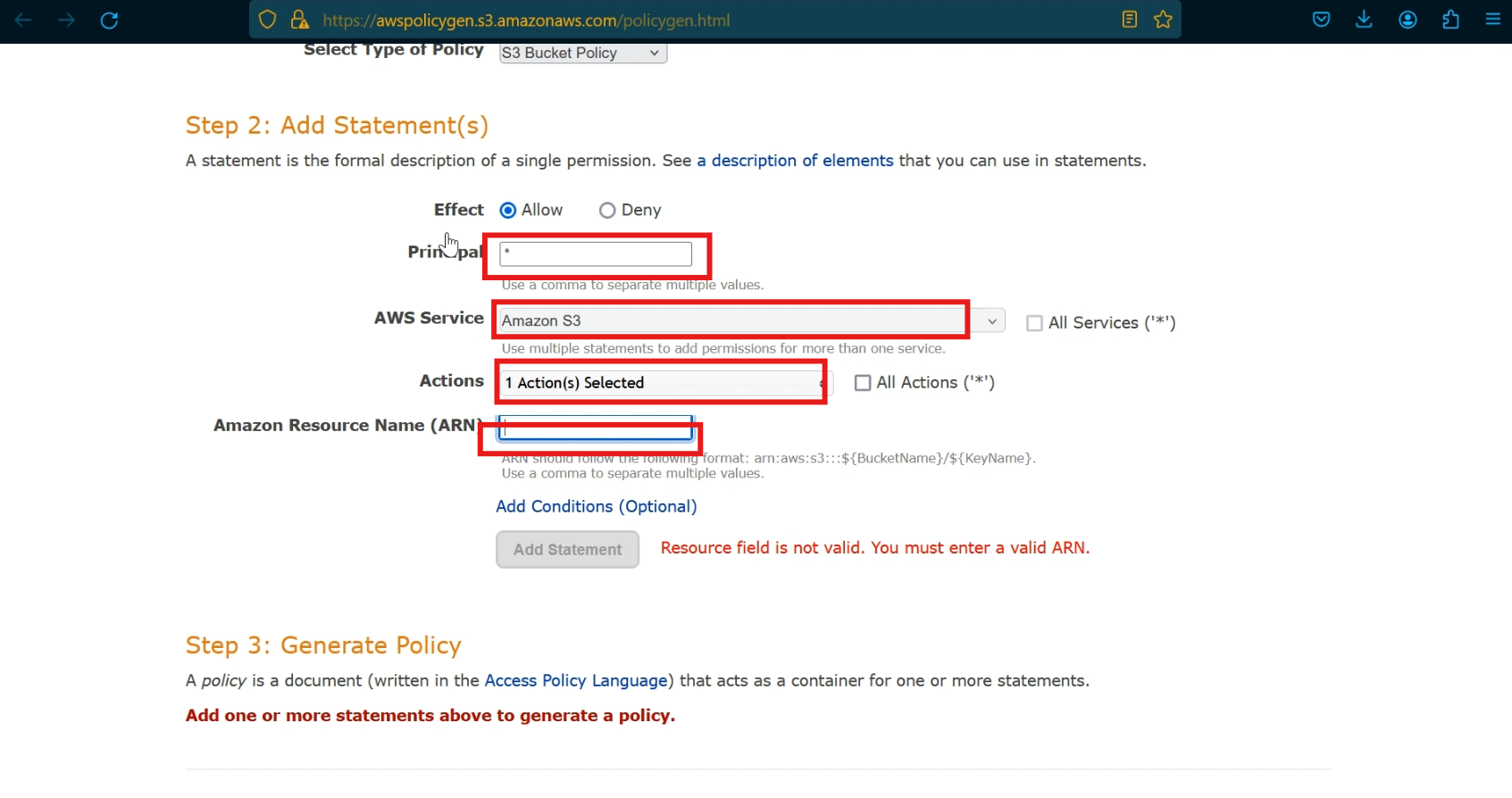

In step2 – principle, type >> ” * “ , in AWS service, choose >> amazon S3, In actions,choose >>”GetObject“.

S3 bucket policy

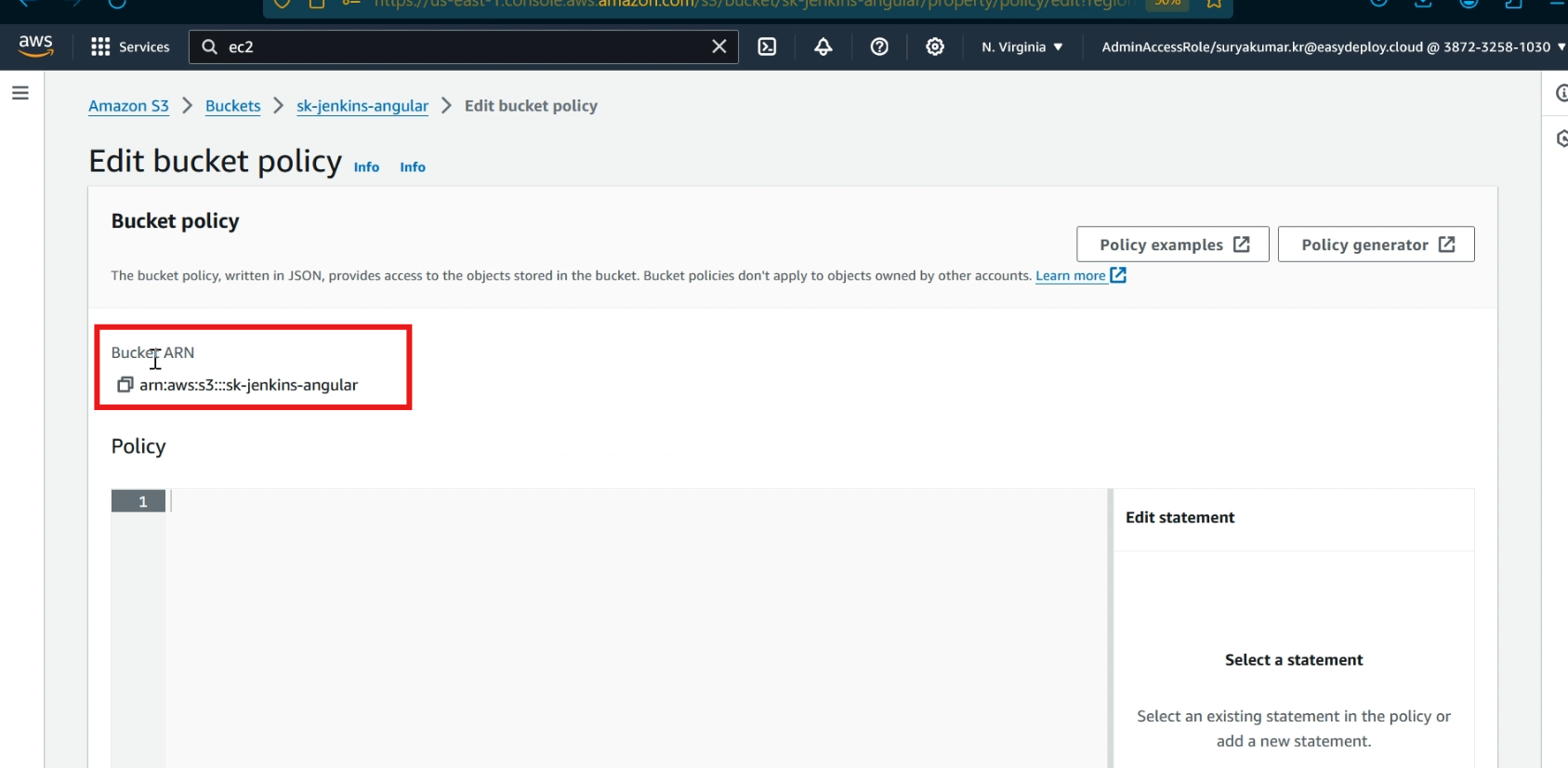

In ARN go back to the previous page and copy the >> bucket ARN

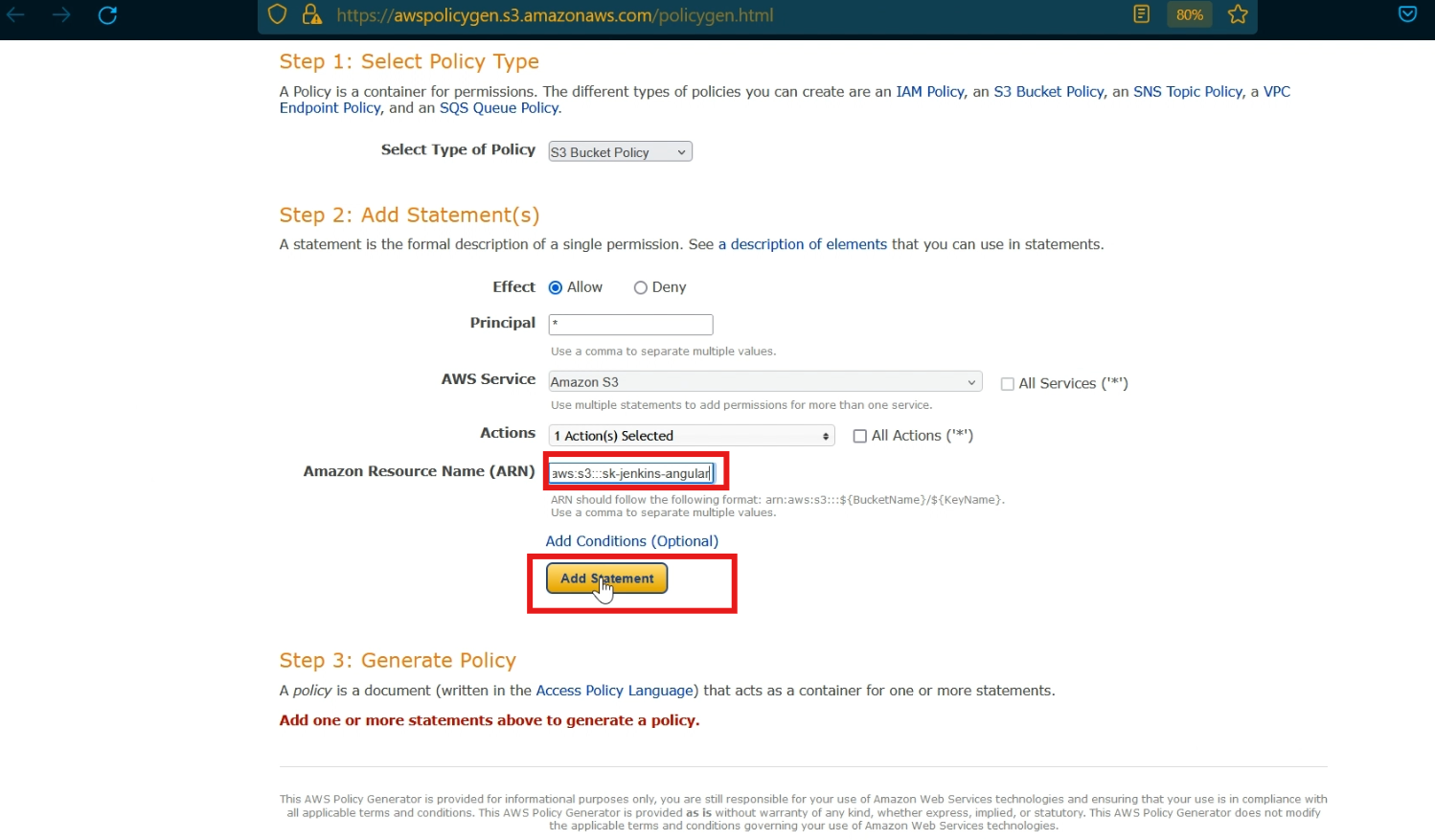

Paste the bucket ARN here and click >> add statement.

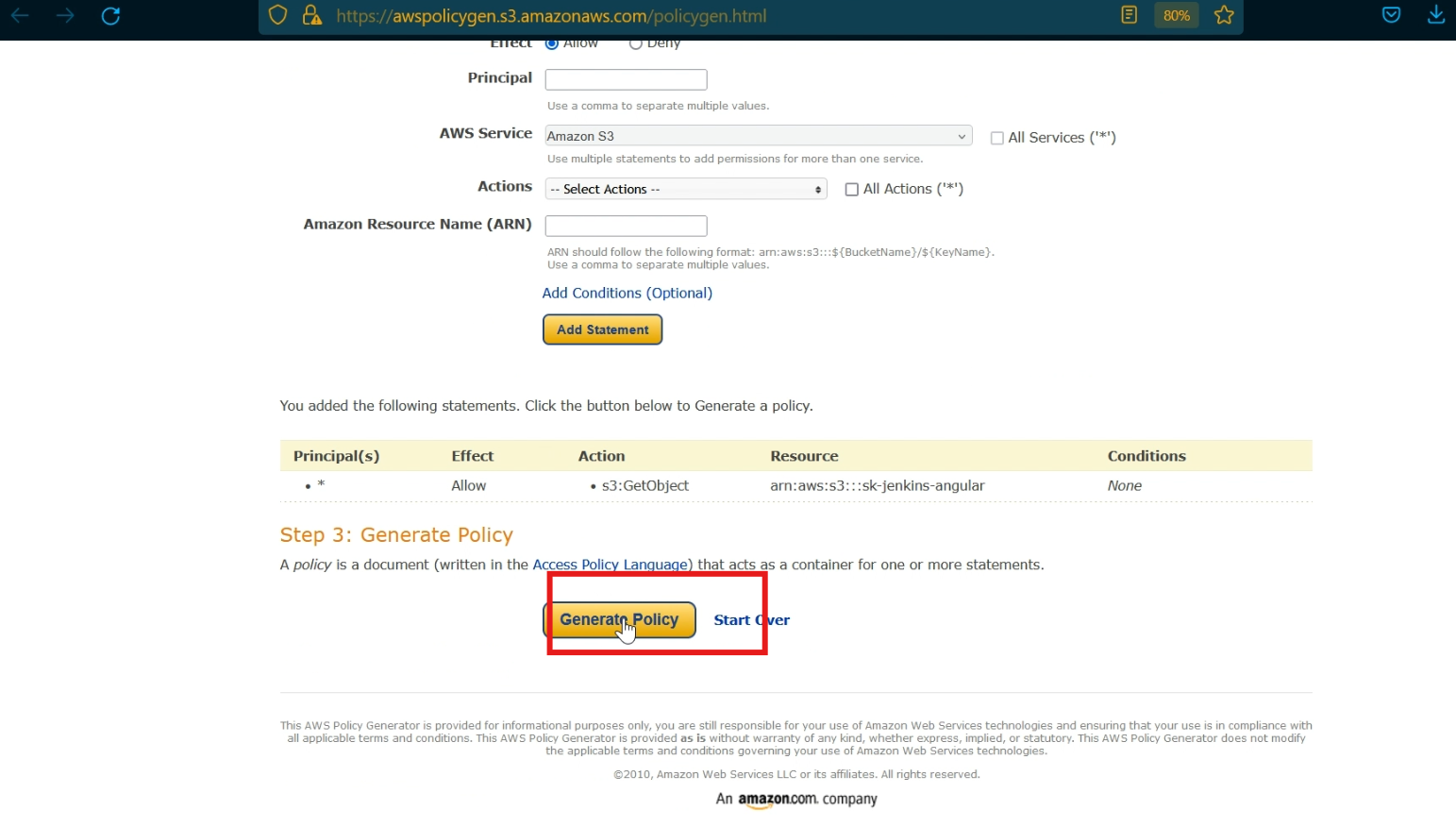

Click >>  generate policy, copy the policy

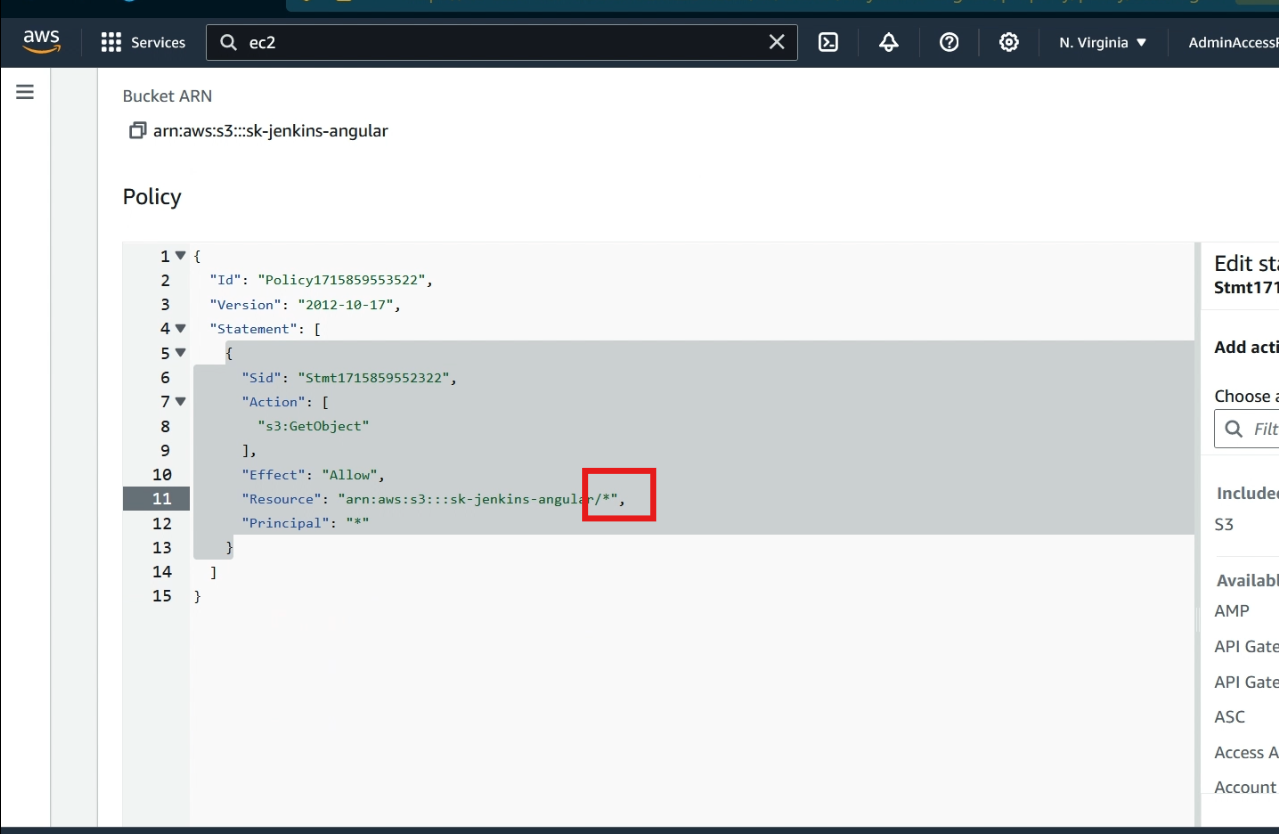

Go back to the previous page and paste the copied policy, add “/*” in the 11th line and click >> save changes


Now we set all the things in the s3 bucket

Jenkins server

This is my Jenkins server, I already installed Jenkins, open the Jenkins server.


Click >> Create a job, add >> name,choose >> pipeline, click >> ok.

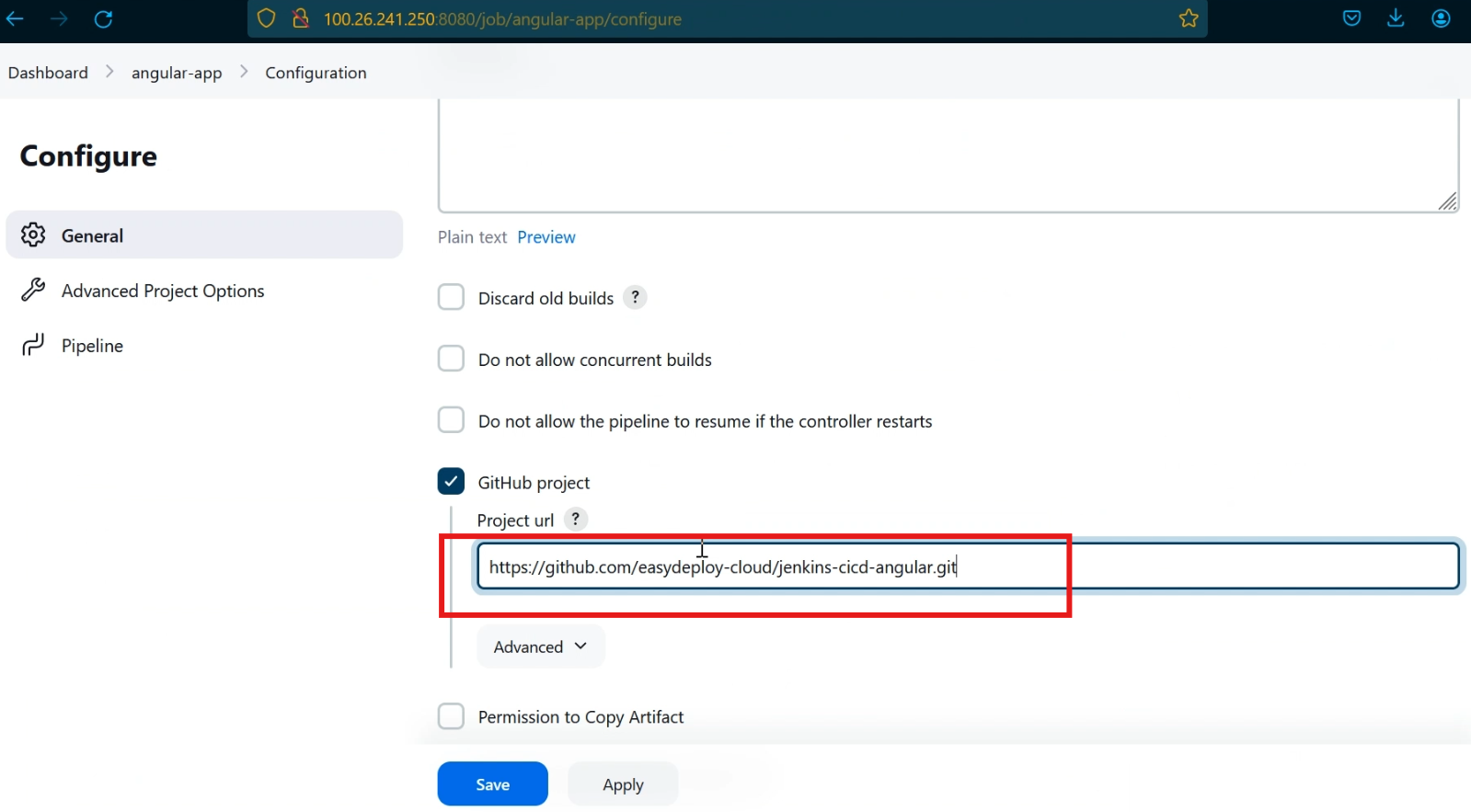

Select >> Github project, paste the GitHub project repository URL

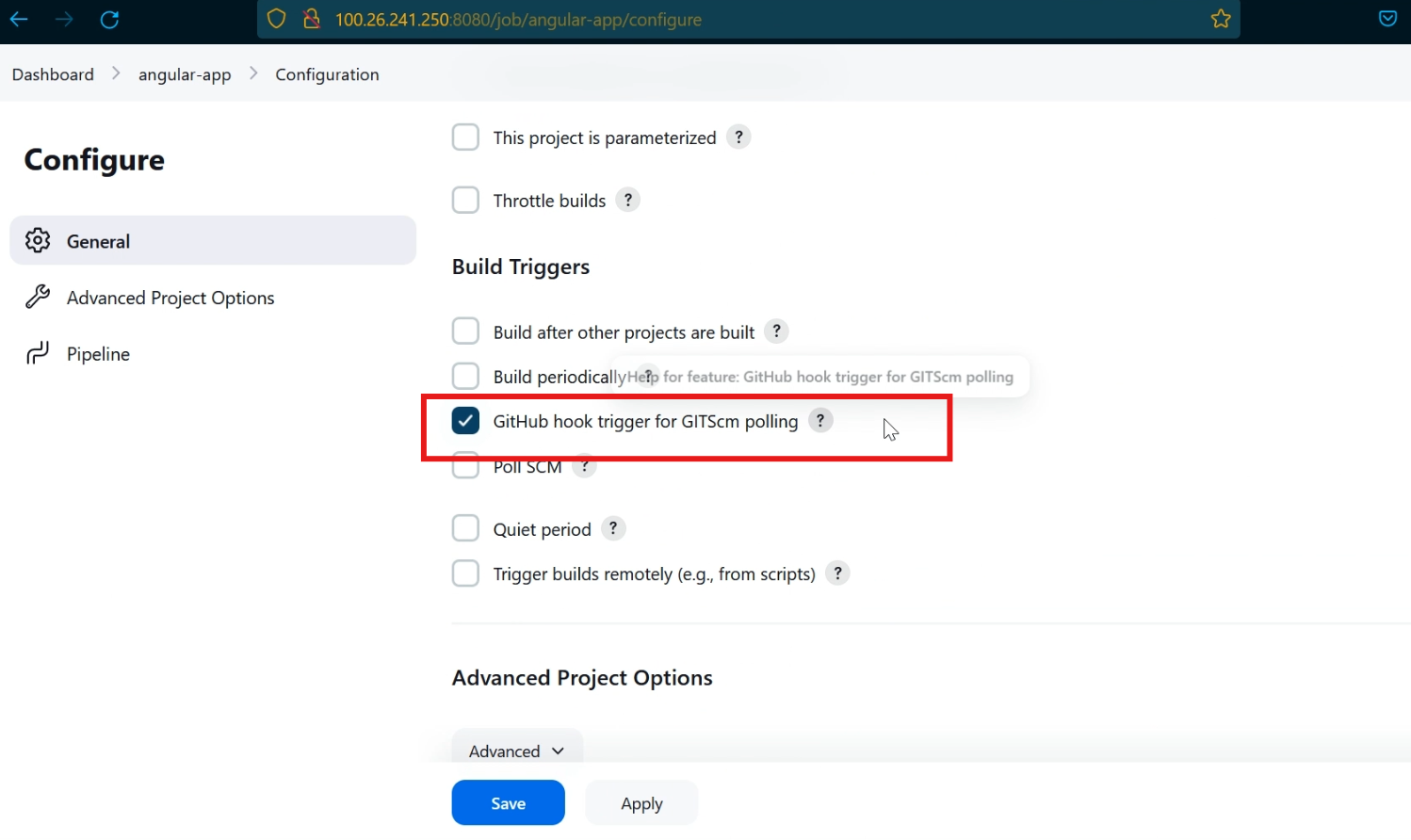

In build triggers, select >> github hook trigger

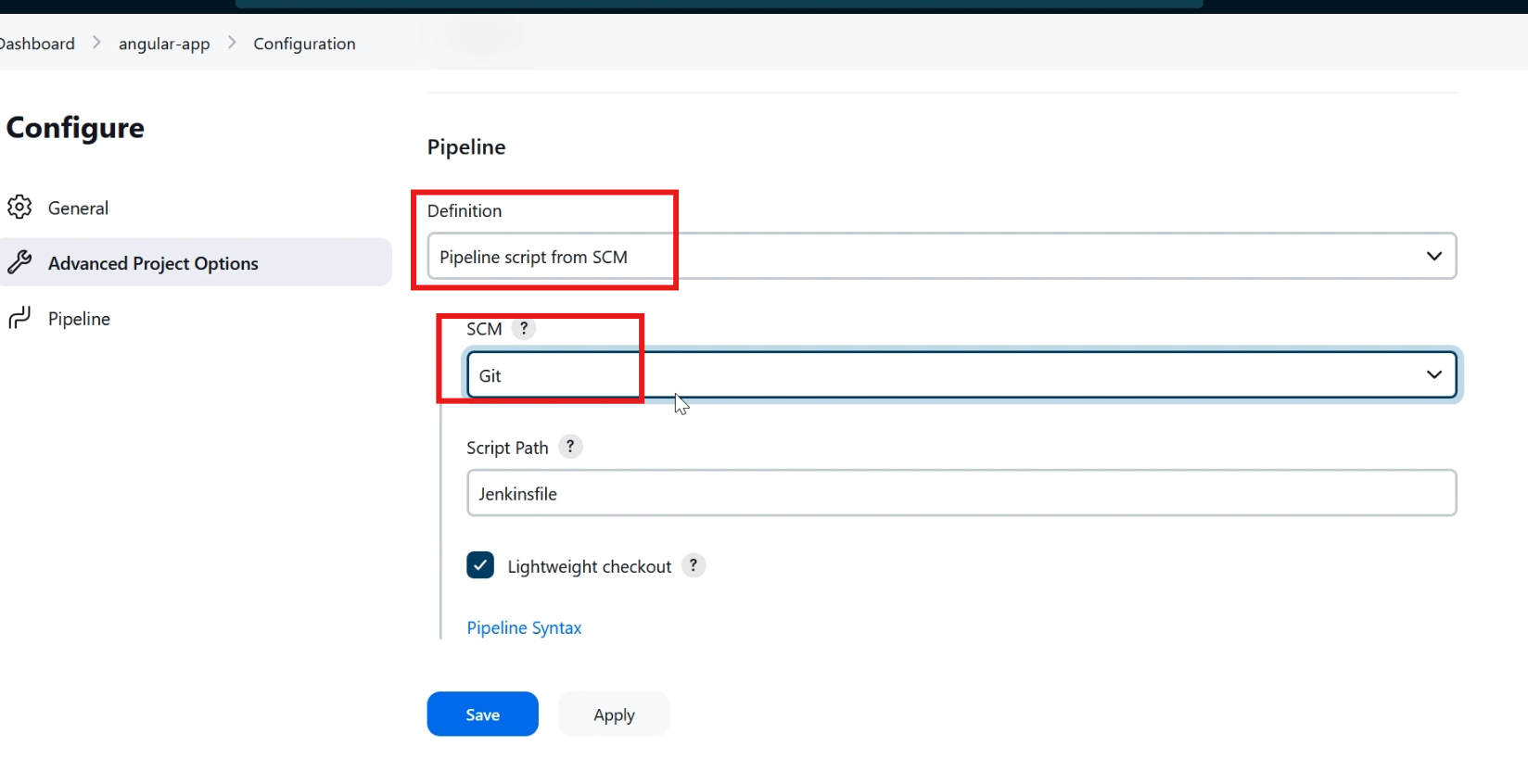

In definition, choose >> pipeline script for SCM, In SCM choose >> git

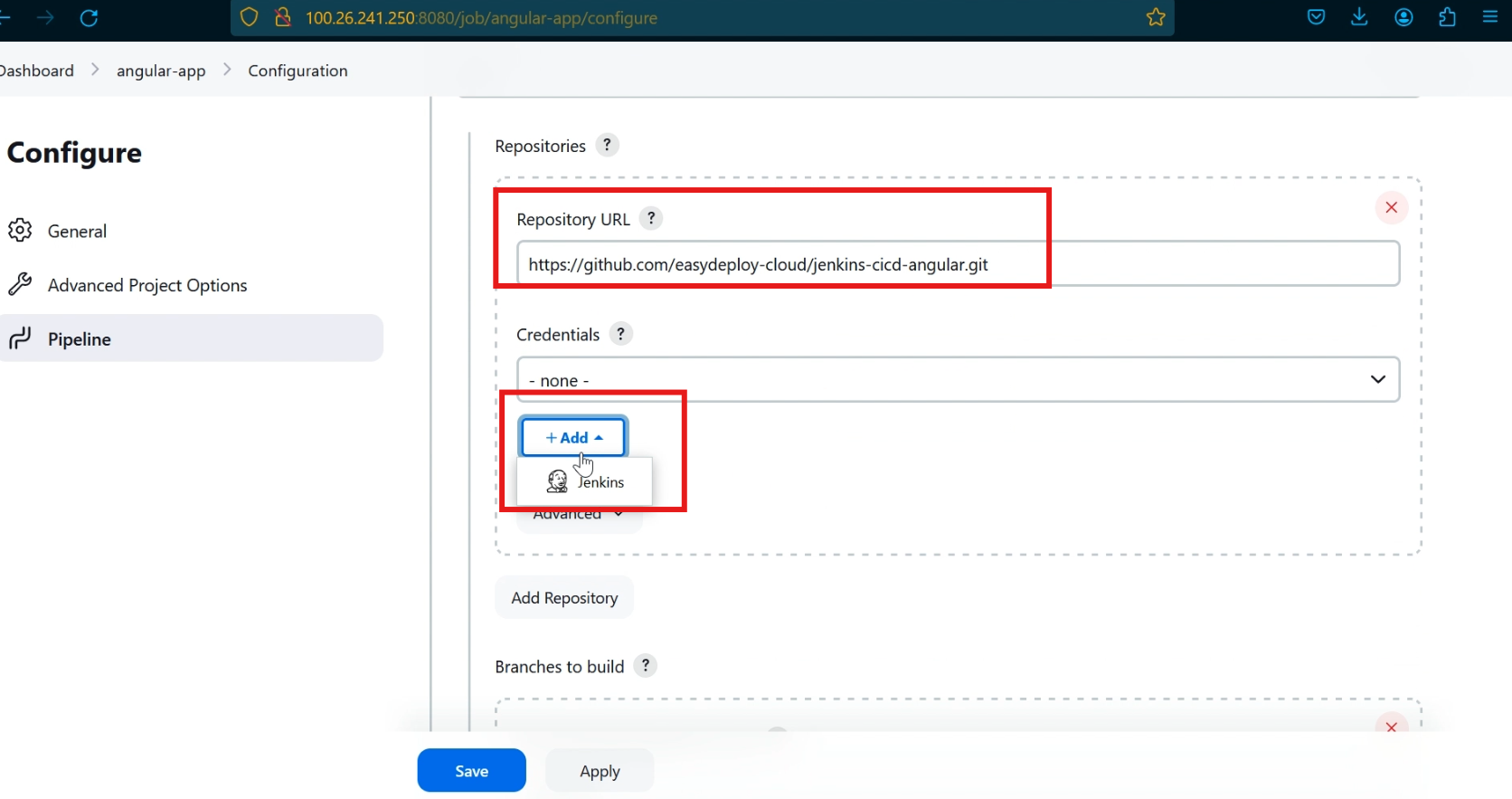

Add the github project repository url again, In credentials, click >> add , choose >> Jenkins

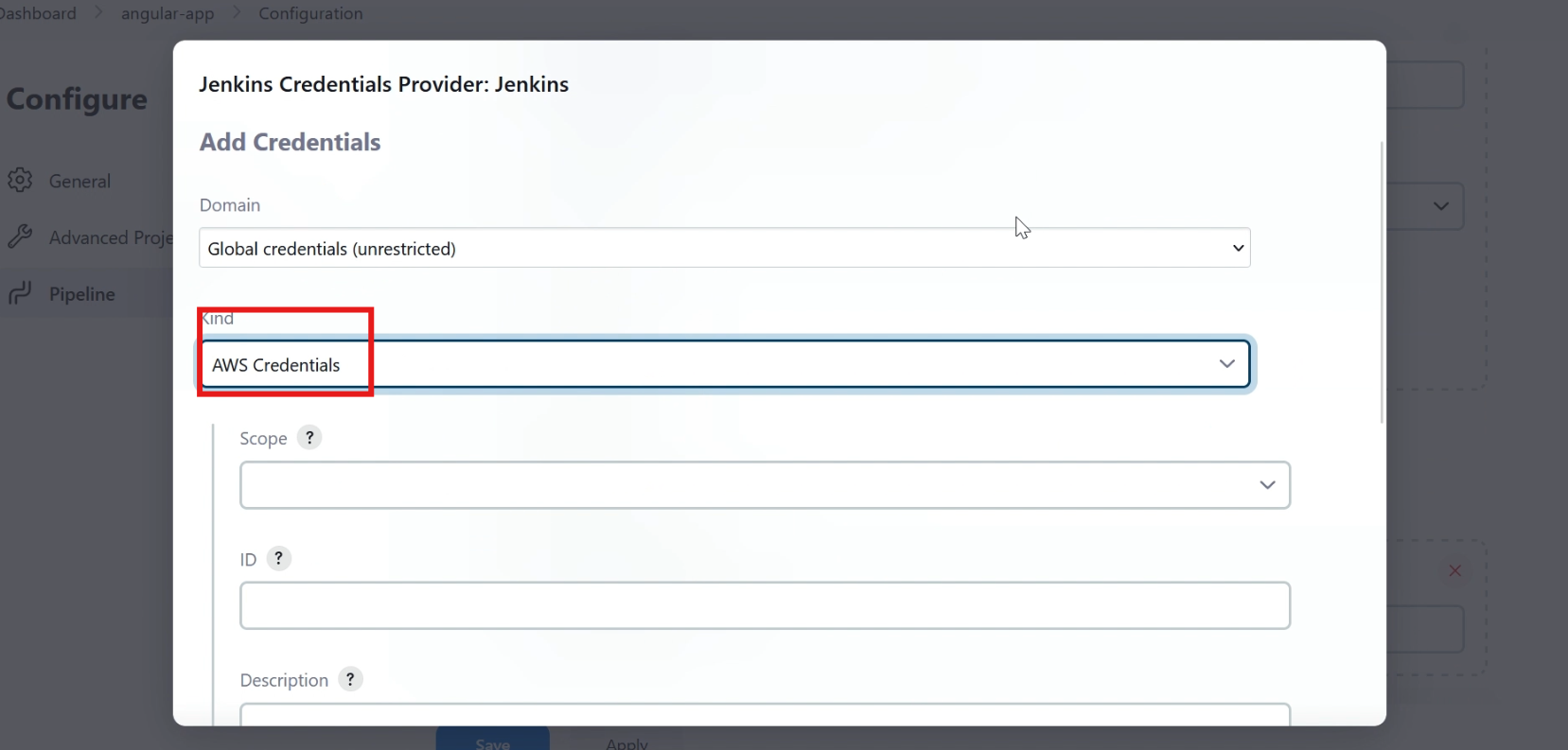

Choose >> AWS credentials (if it is not shown go to Jenkins main page, click manage jenkins, click plugin, and install AWS credentials plugin

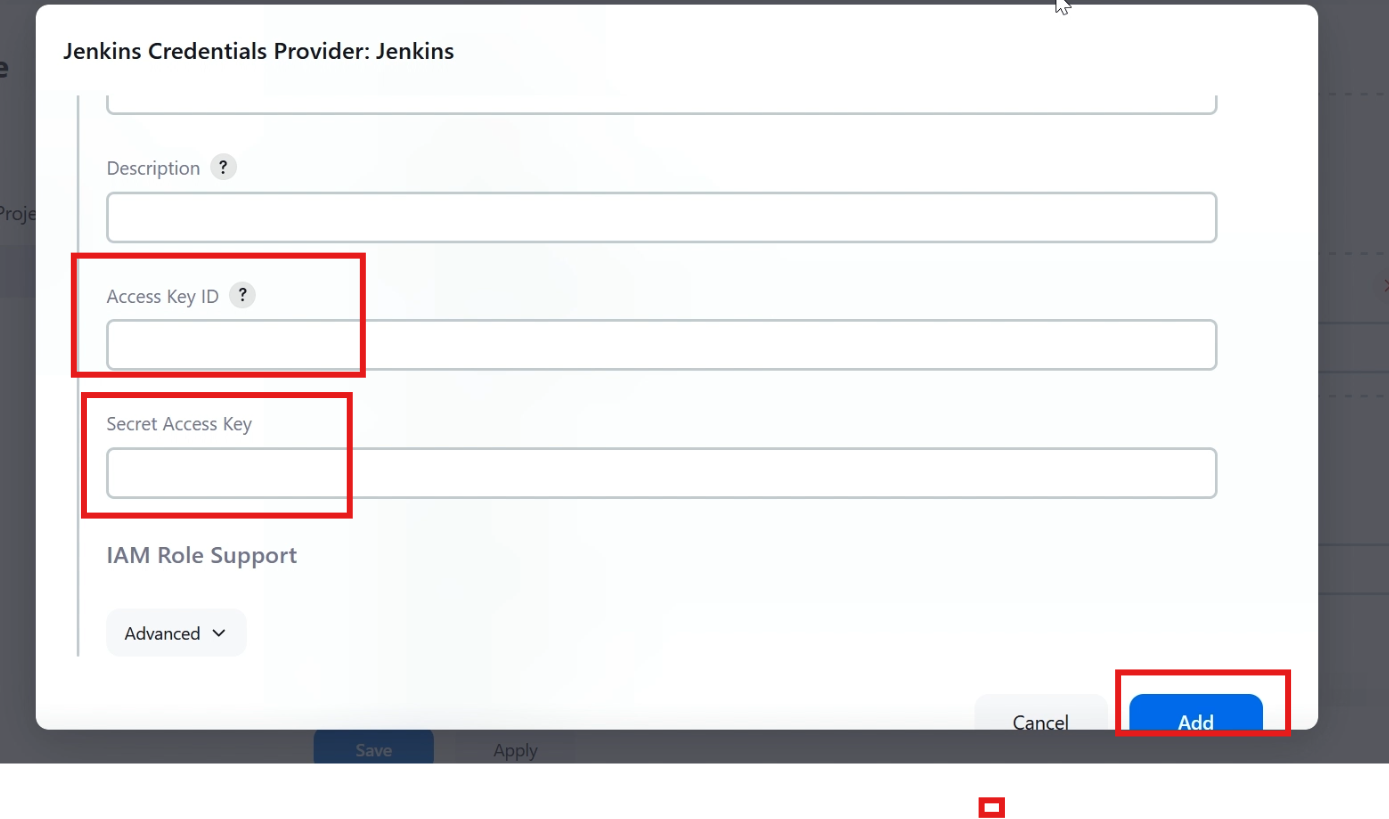

Add access key and secret key of the user that we created in the first step, and click >> add

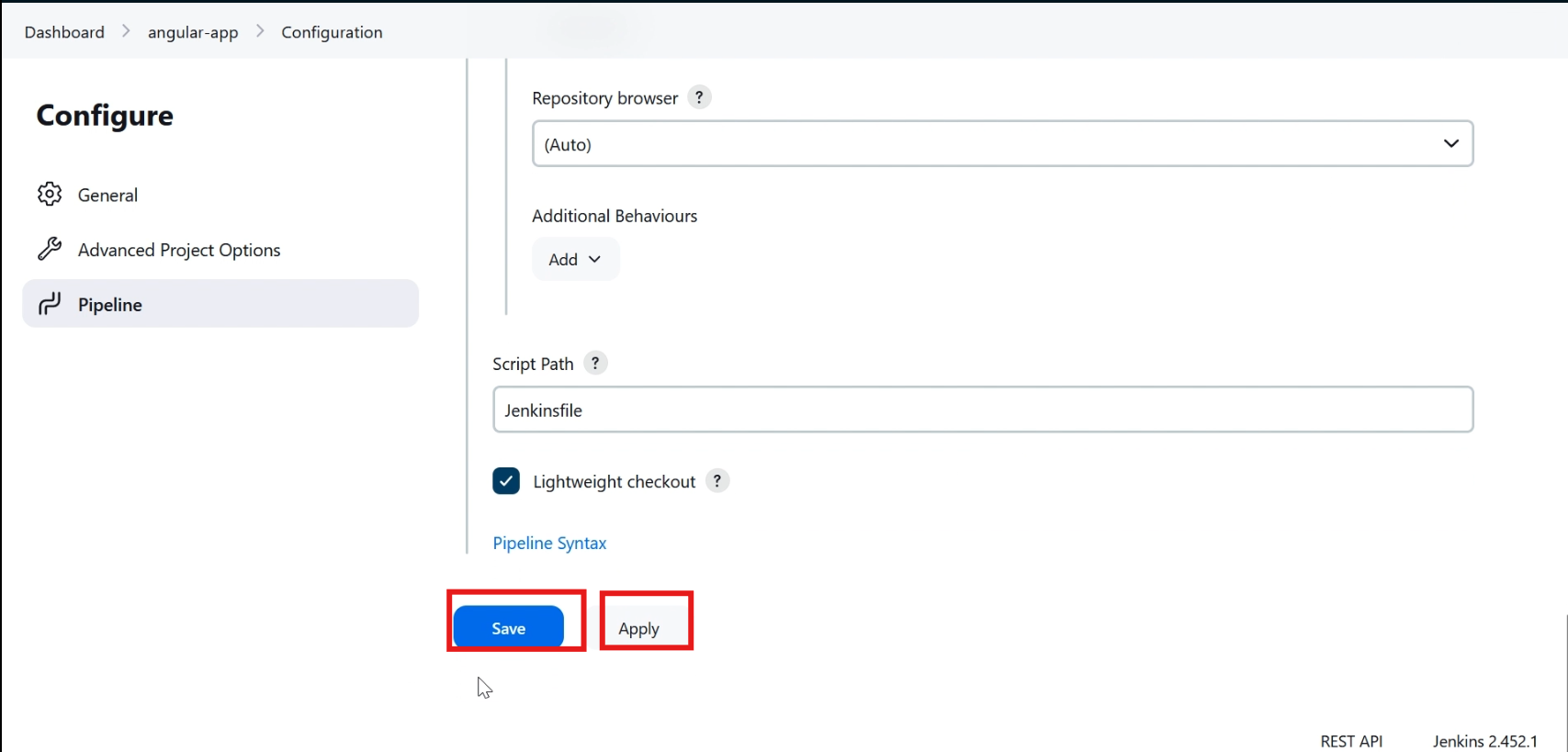

Click >> apply and save

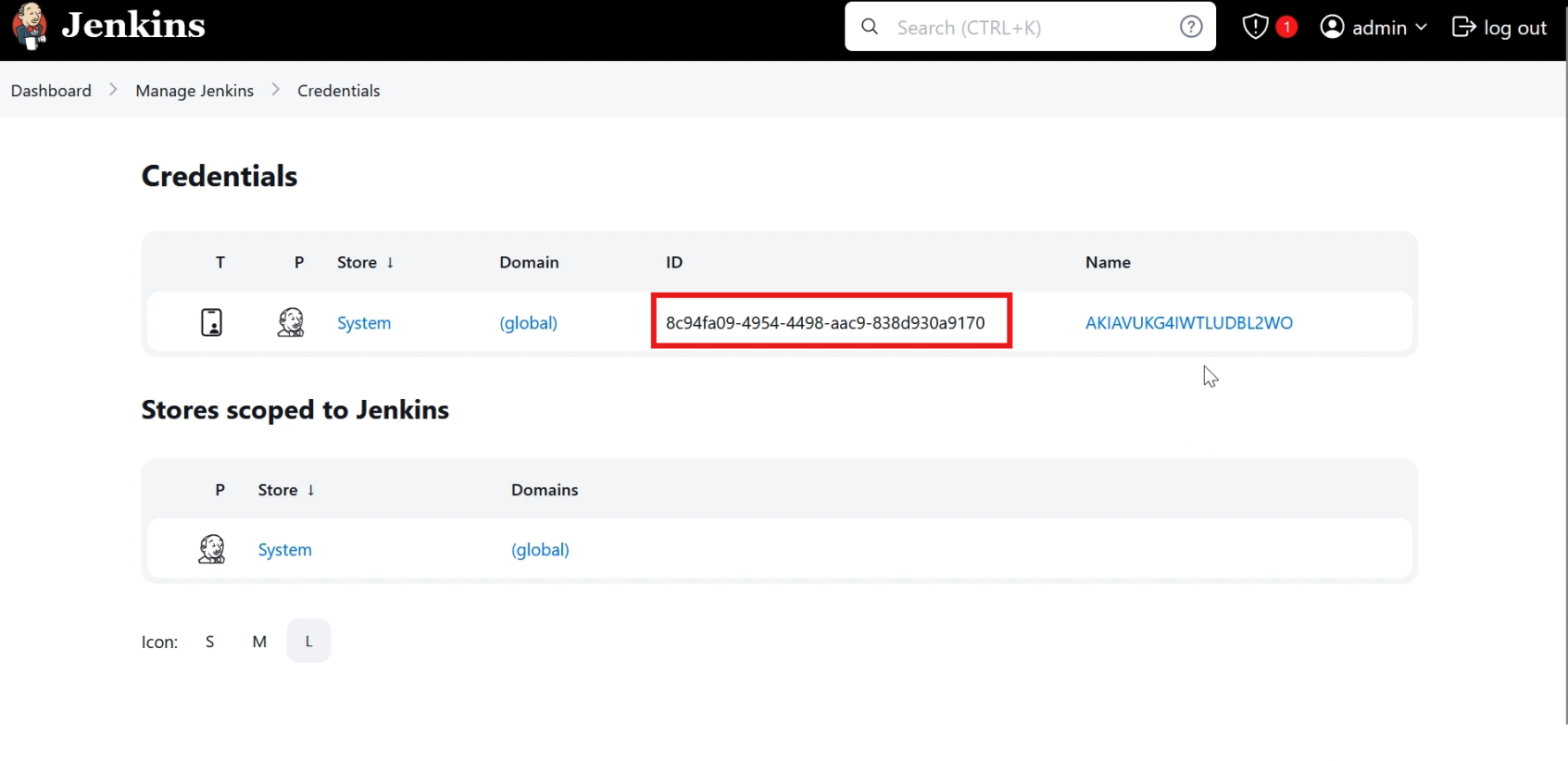

Now we successfully created a job, go to Jenkins main page, click >> manage Jenkins, and click >> credentials, here it will assign a credential id for the aws credentials, copy the credential id


Setup Github

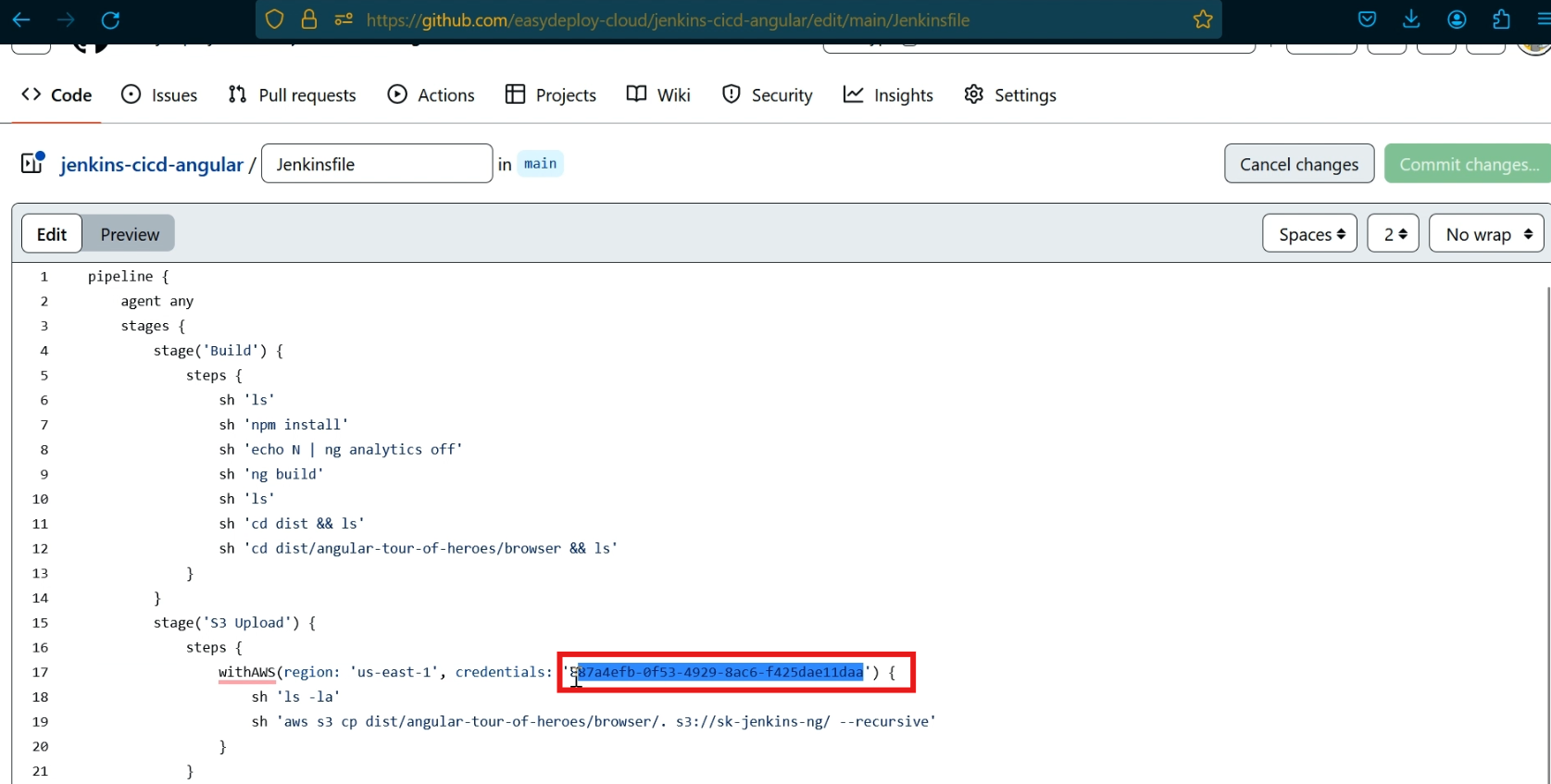

Go to github, add the credential id in the jenkins file


To reference my Jenkins file, please consult the file “jenkinsfile” located in the root directory of this repository: https://github.com/easydeploy-cloud/jenkins-cicd-angular

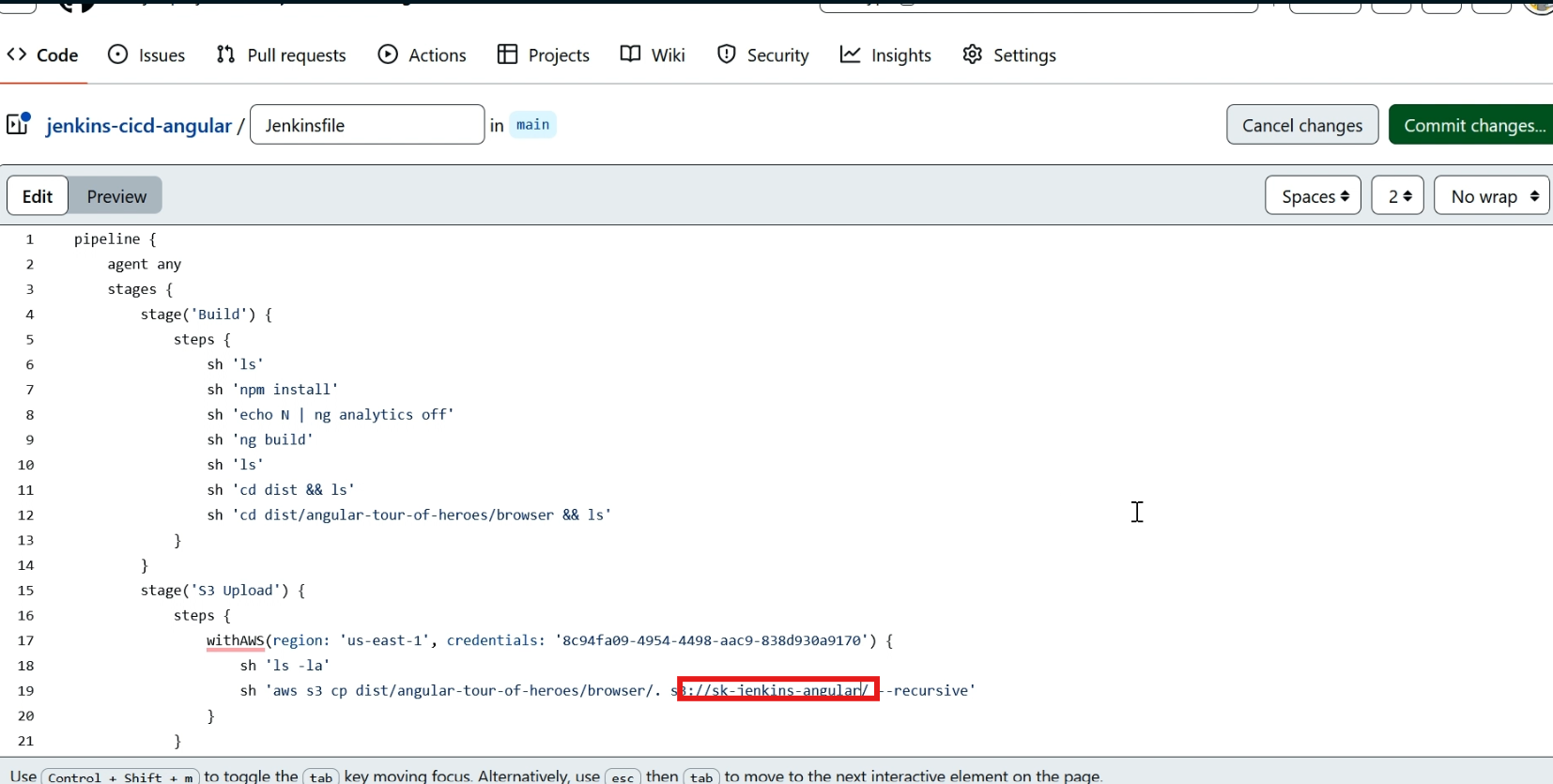

Now add S3 bucket name in the jenkinsfile

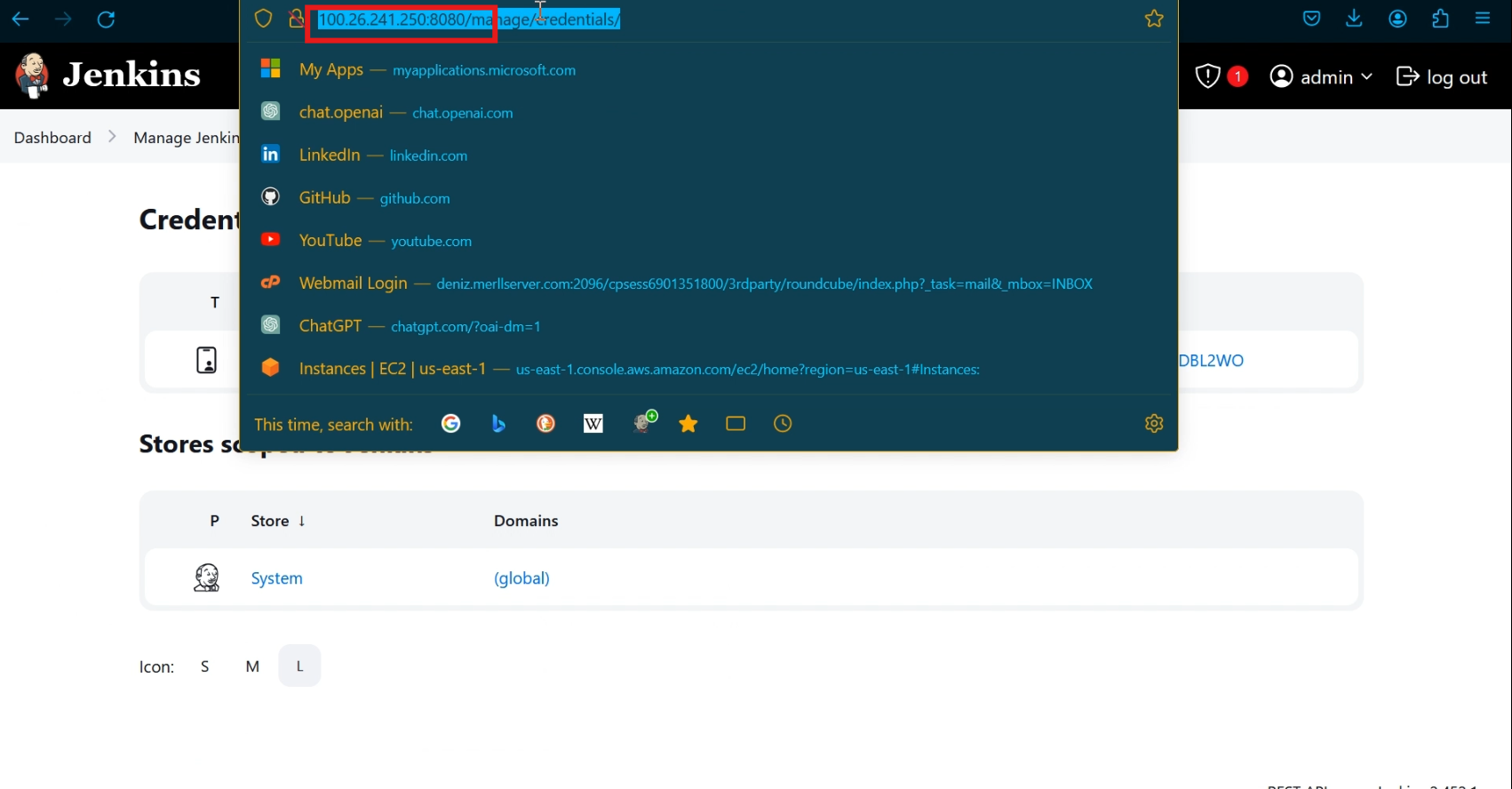

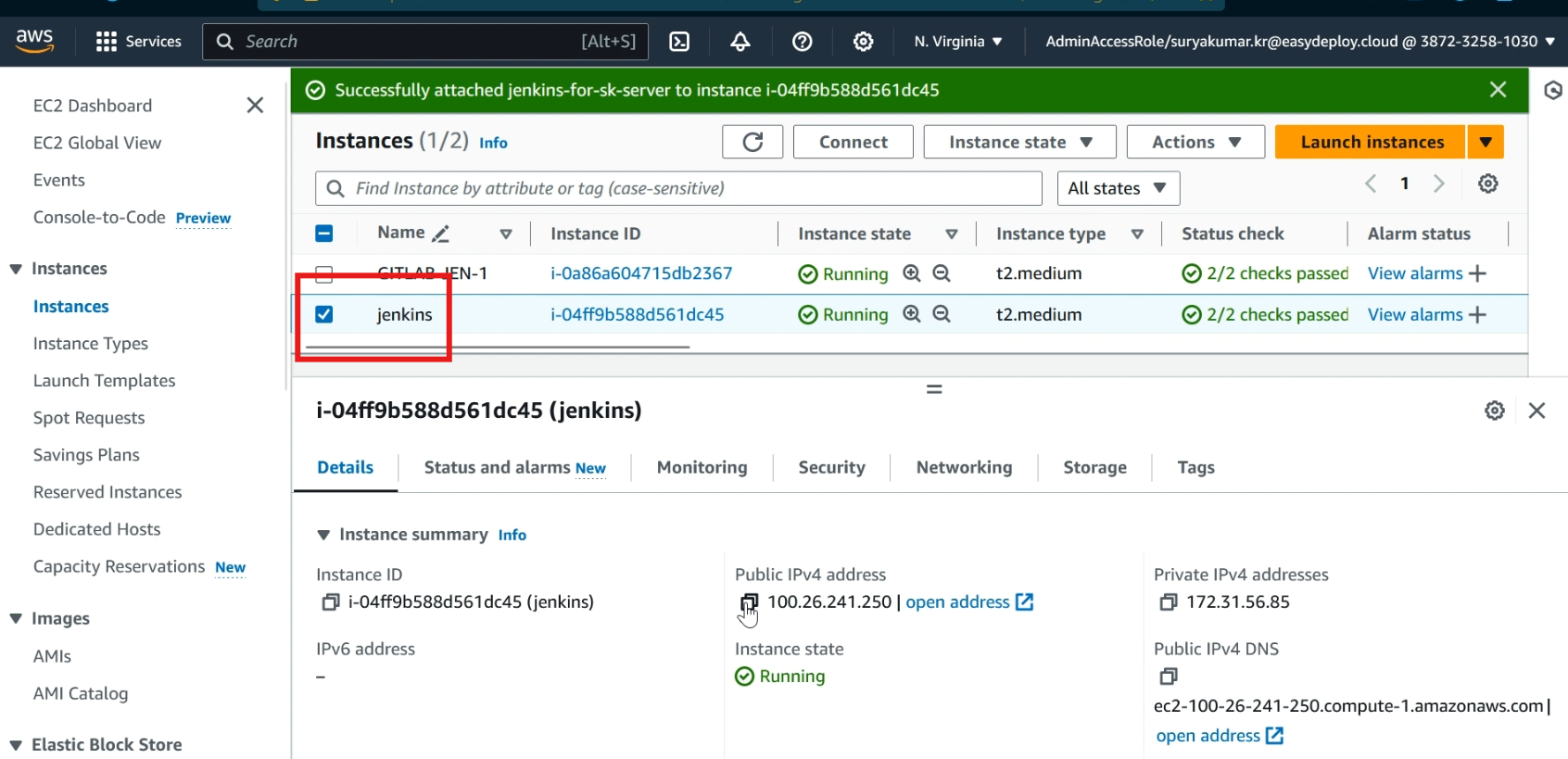

Now go to Jenkins server copy the public ip

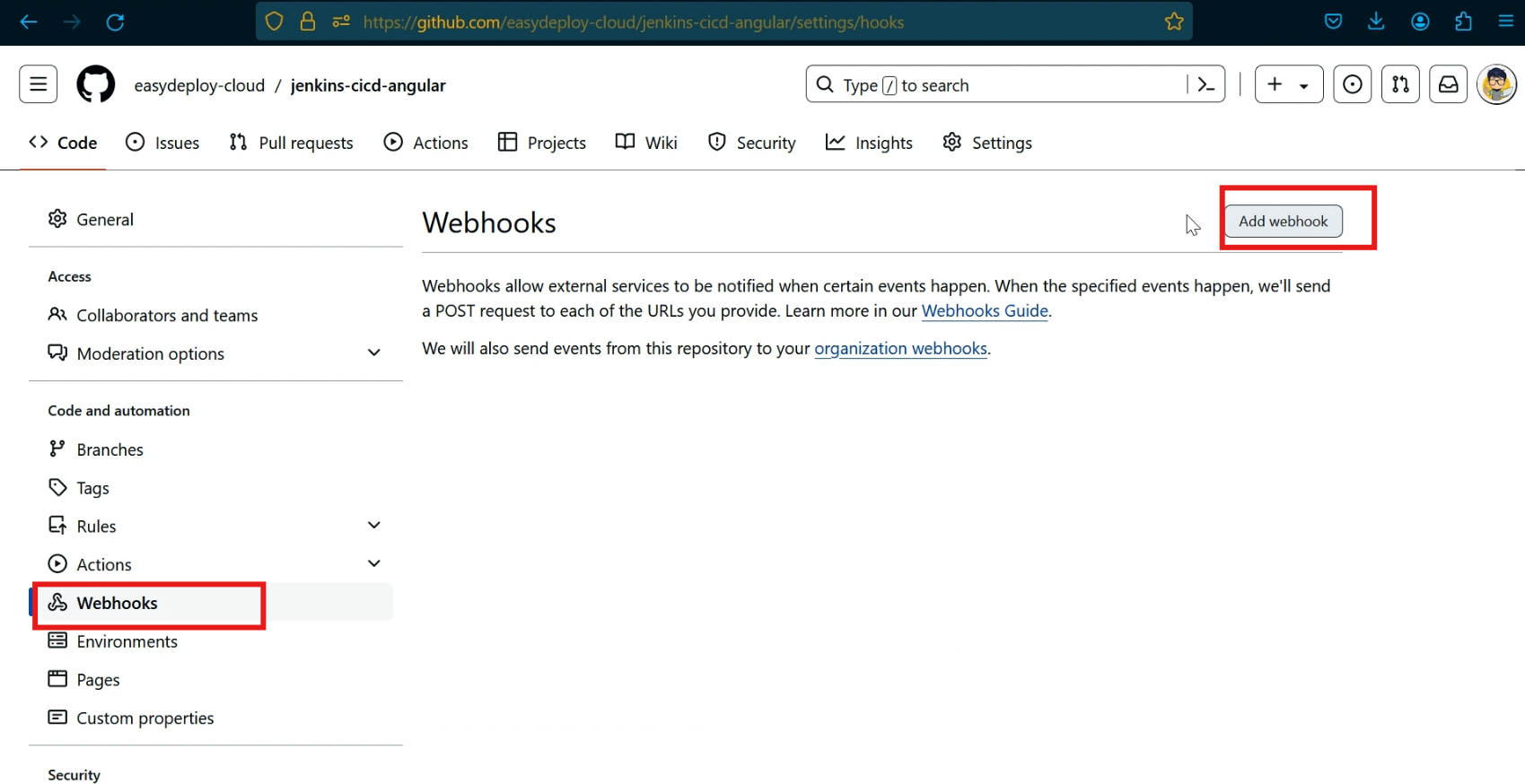

Go to github repository settings, click >> webhooks, click >> add webhook

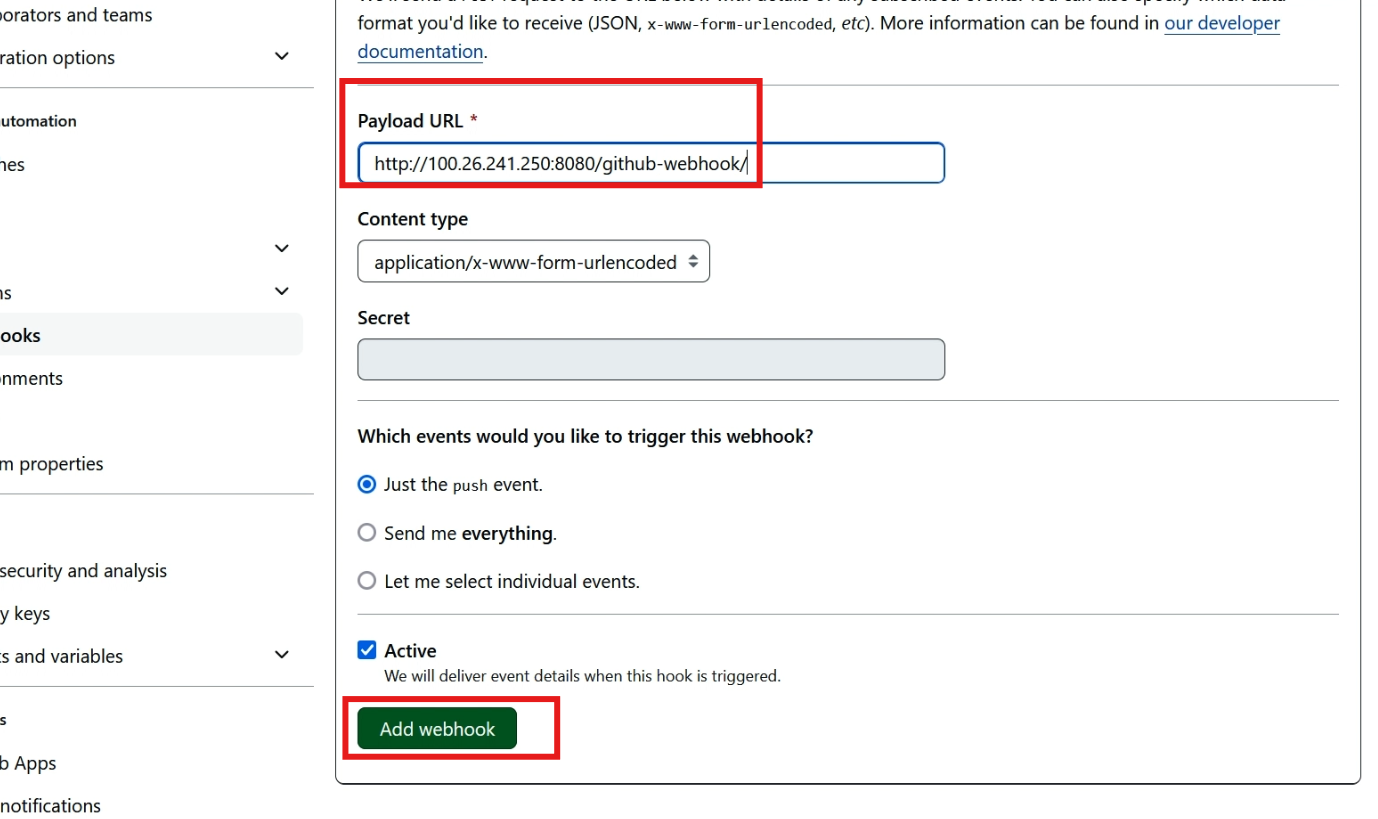

Now paste the jenkins ip here and type “/github-webhook” and click >> save

Github webhook

Jenkins job

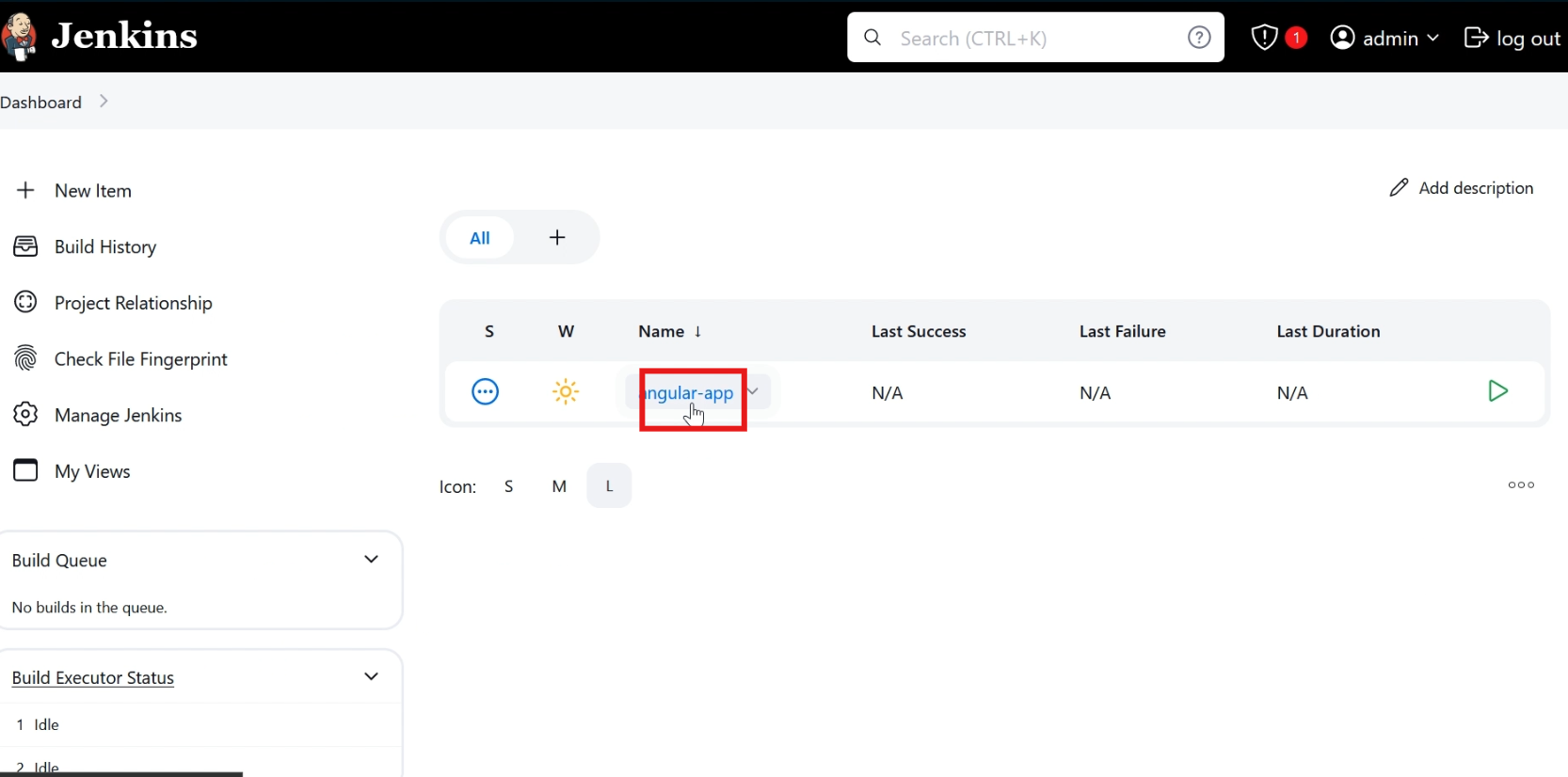

Go to Jenkins dashboard, click >> your jobJenkins job

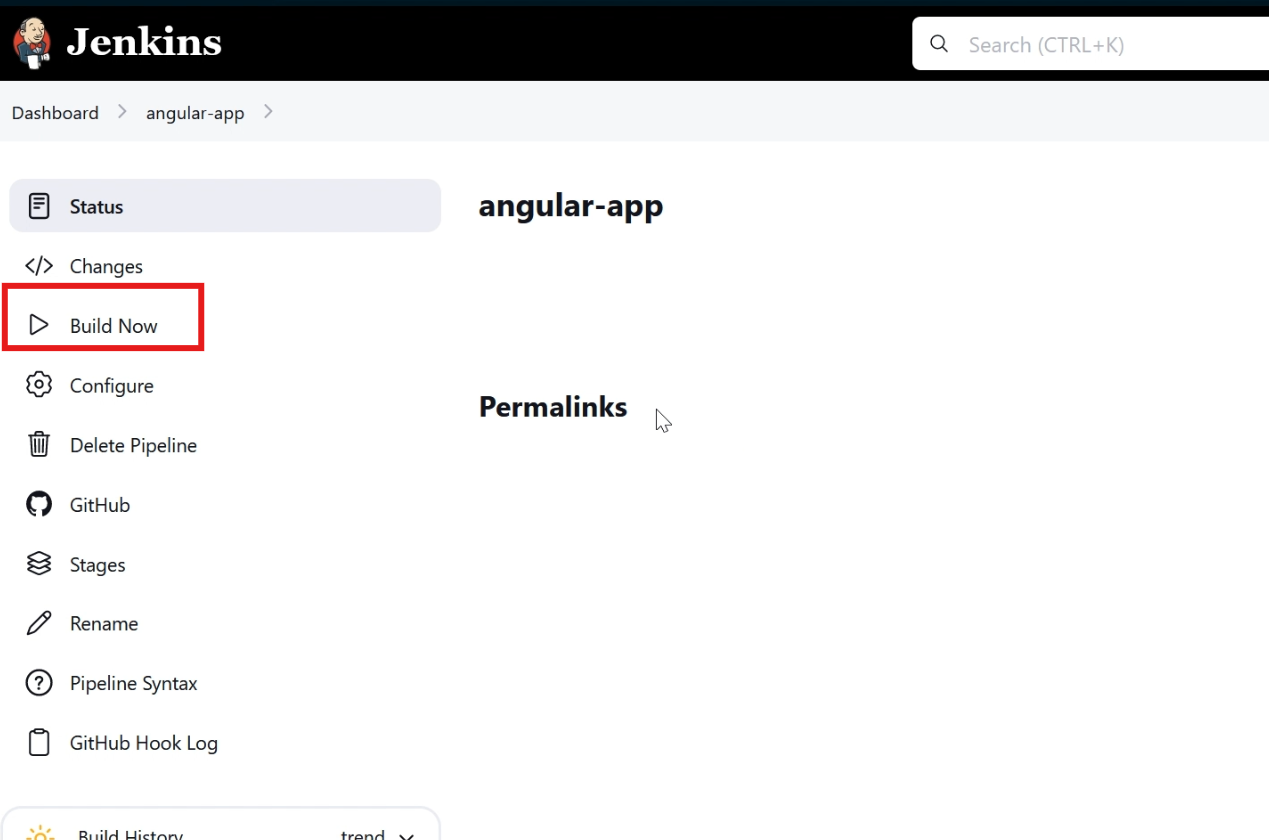

Click >> build now

Jenkins job

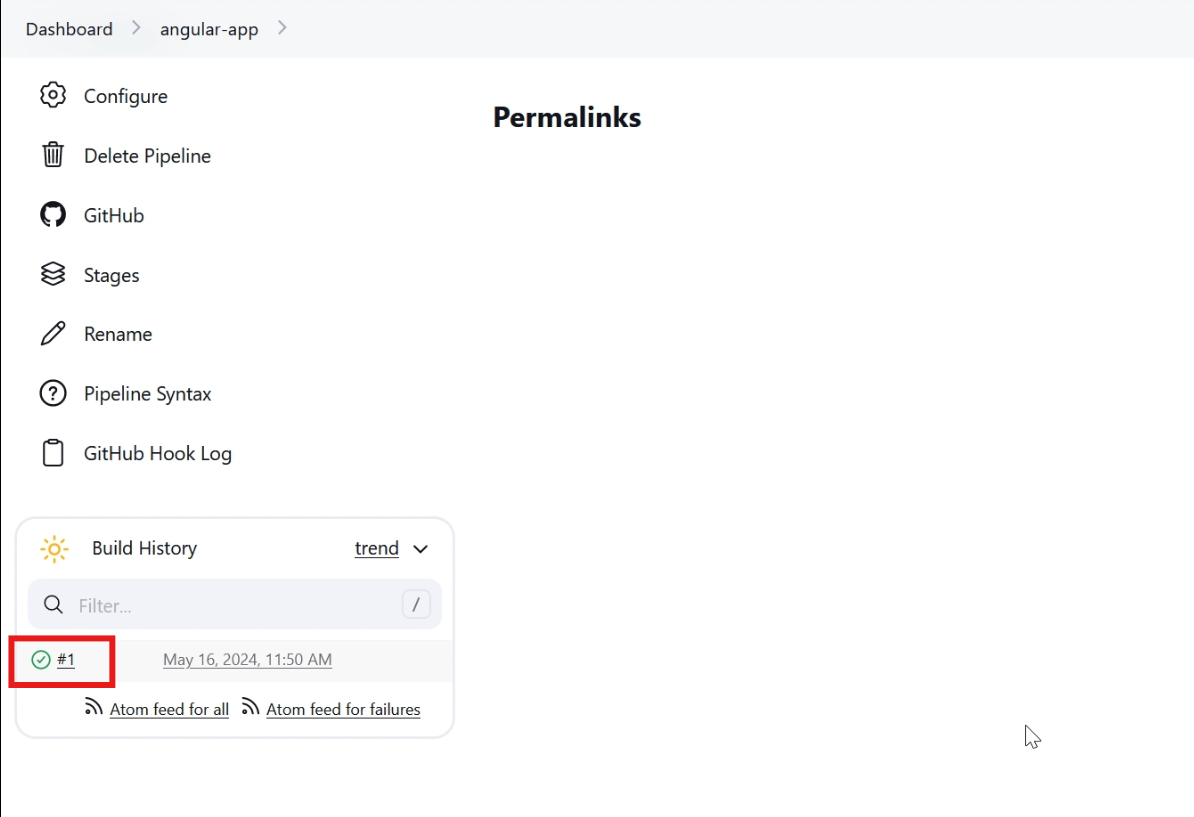

Now our project is successfully buildt and deployed in s3

Jenkins job build


Web hosting

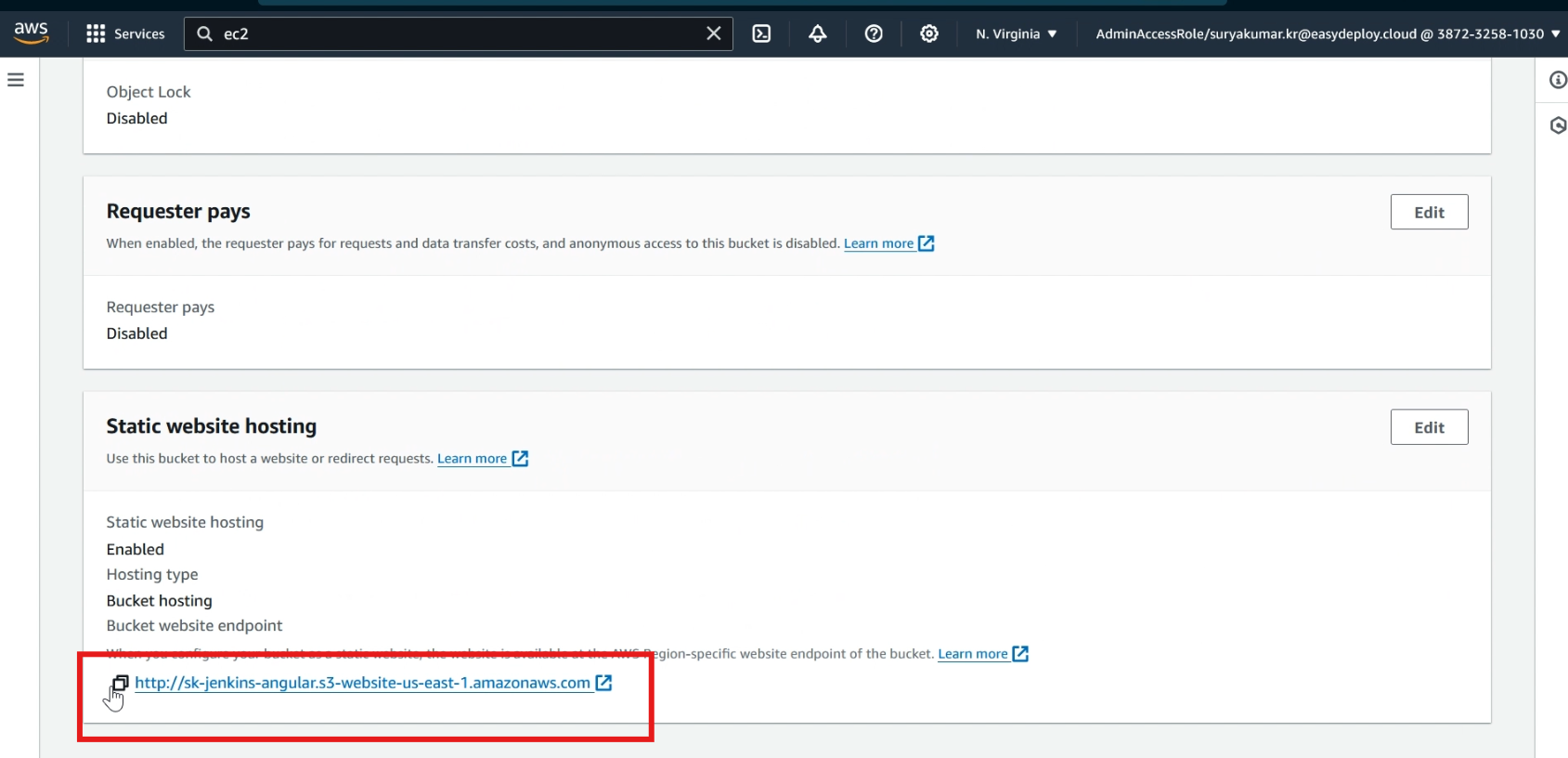

Go to S3 service, choose your bucket, click >> properties, scroll down, and copy the static web hosting url


paste it in the new tab

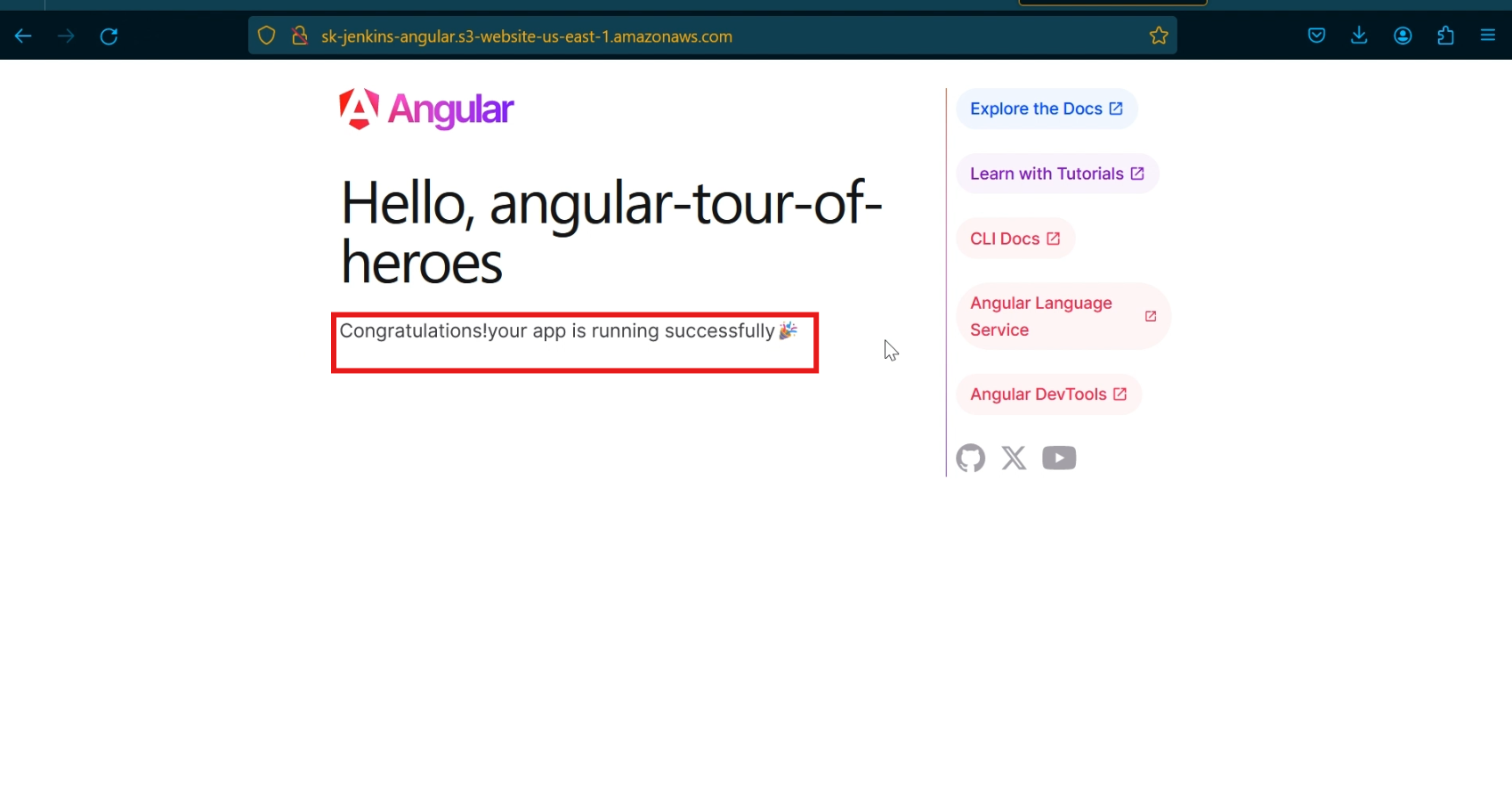

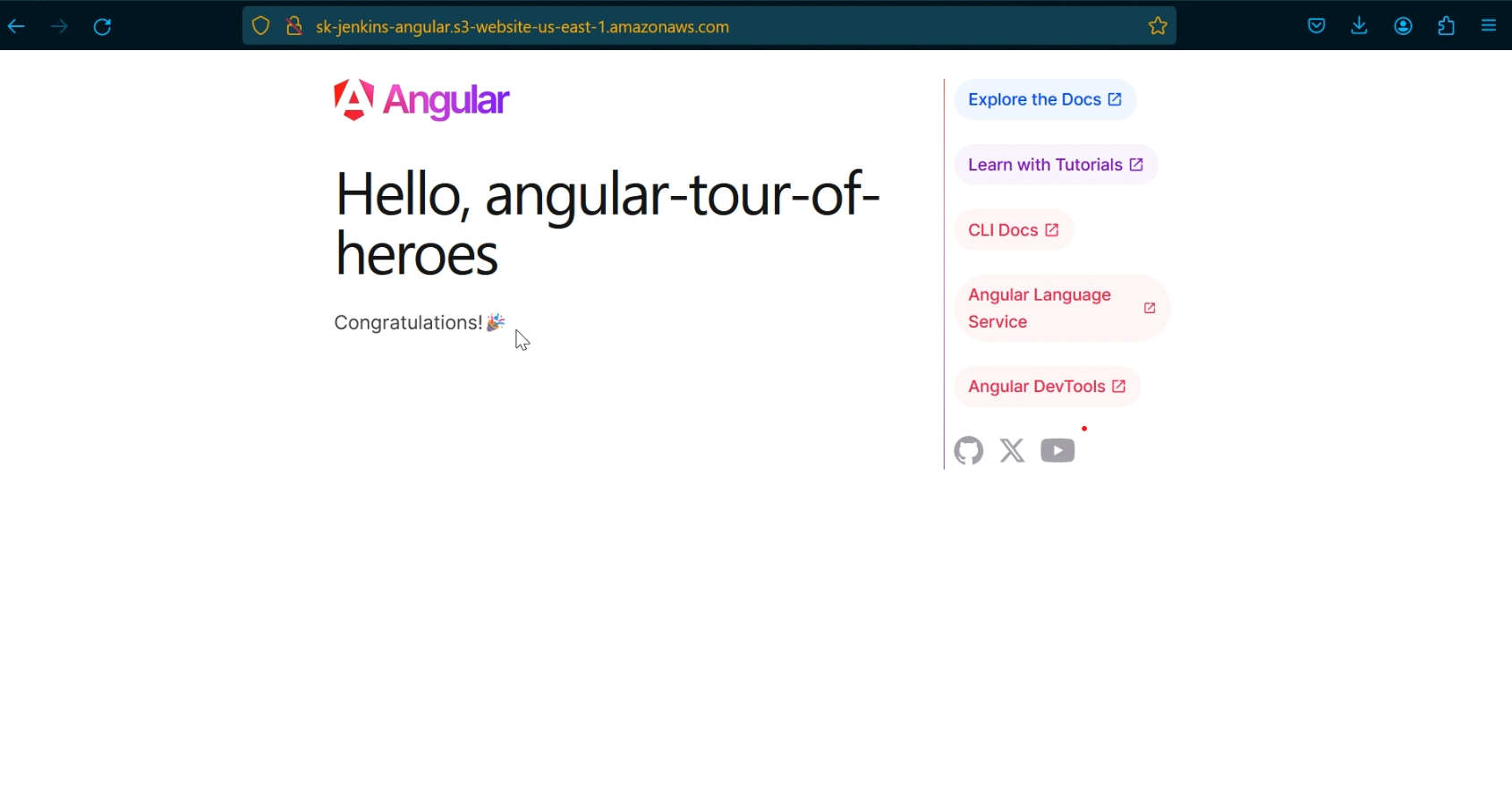

Angular app

Now our Angular project is successfully built and hosted in the S3 web hosting.

Now I am going to change some content to check if the auto trigger is working properly or not.

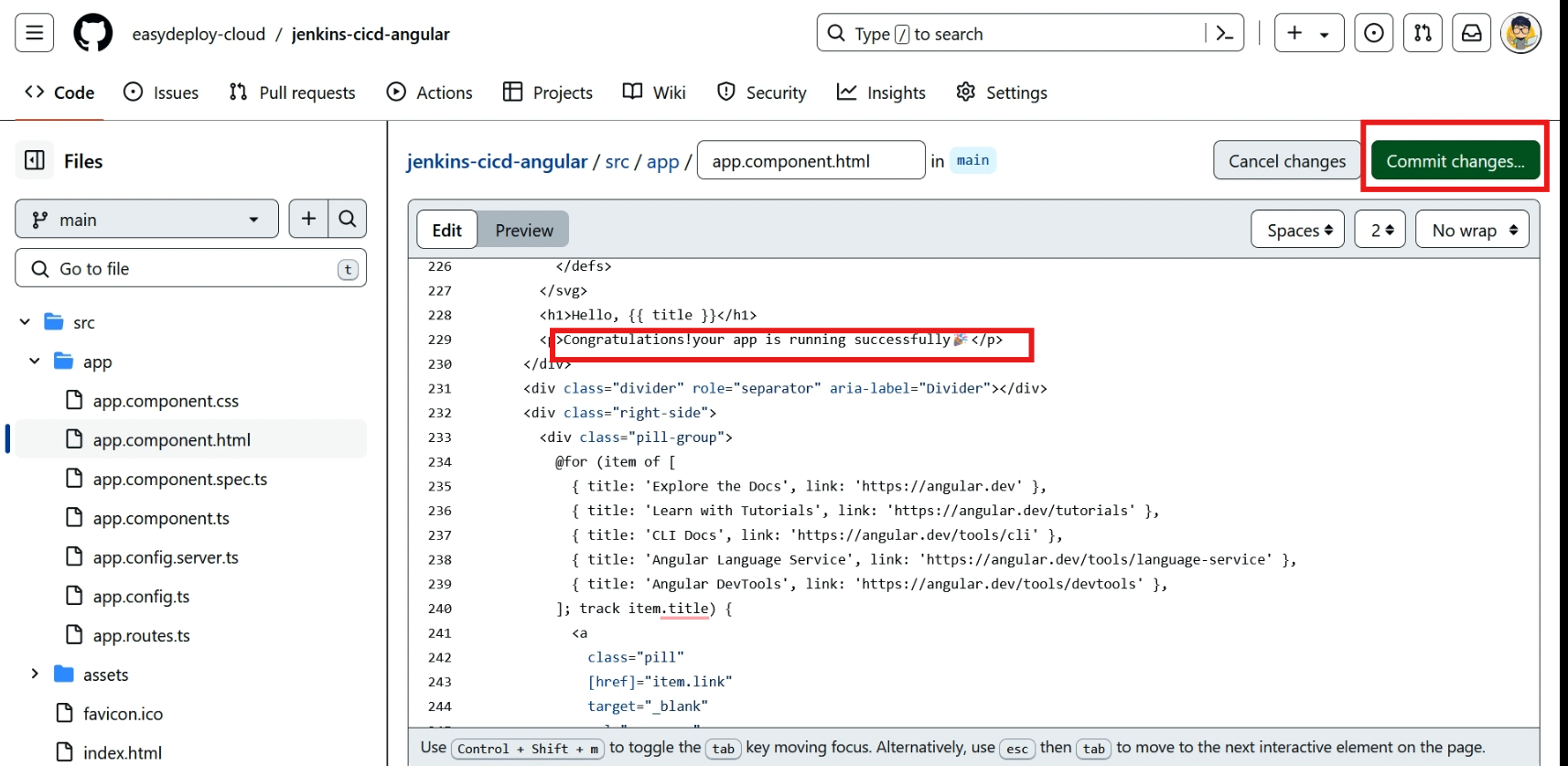

Go to GitHub project repository, I am changing some content on the main page(app.js), click >> commit changes.

Angular app

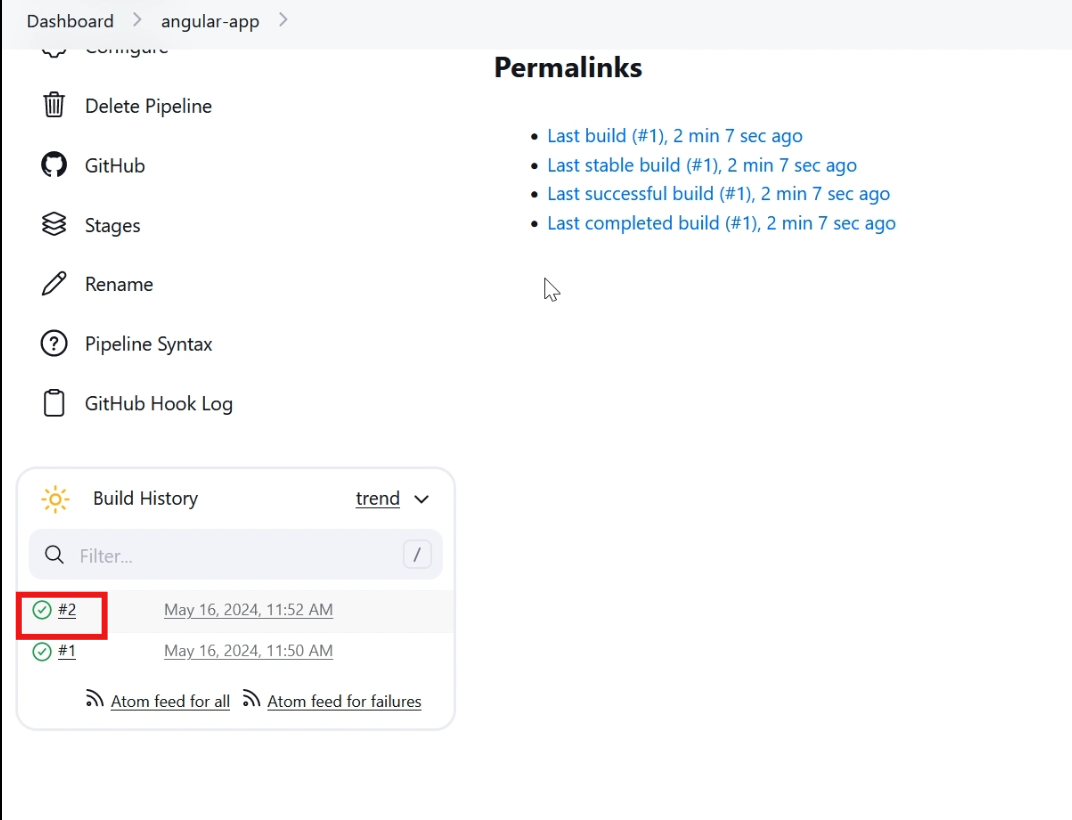

The auto trigger is working properly, it successfully built the job and hosted it in the s3

Auto trigger deployment

Go to the react js page, click >> refresh button. Now the content has changed

React app

setting up a Jenkins CI/CD pipeline to build and deploy a angular app from GitHub to Amazon S3 involves:

Configuring Jenkins with GitHub and AWS credentials.
Creating a Jenkins job to pull code from GitHub.
Building the Angular app.
Deploying the built files to an S3 bucket.

This automated process ensures efficient, reliable, and consistent deployment of your application, allowing your team to focus on development rather than manual deployments.
