Setup spring boot server using Ansible script in Amazonlinux 2

In today’s rapidly evolving IT landscape, automation is key to efficient and scalable infrastructure management. Spring Boot, a popular Java-based framework for building web applications, combined with Ansible, a robust automation tool, offers a potent solution for orchestrating server setup and configuration. This guide will walk you through the process of using Ansible to automate the deployment of a Spring Boot application, streamlining the setup, configuration, and management of your server infrastructure.

Prerequisites

These are the following things that you should need before starting the setup.

  1. One  EC2 instance (amazonlinux 2) as Ansible master server.
  2. One EC2 instance (amazonlinux 2) as a remote server.

Install pip and ansible in the Amazonlinux 2 server.

  • SSH to your Amazon Linux server
  • Install pip
sudo yum install pip -y

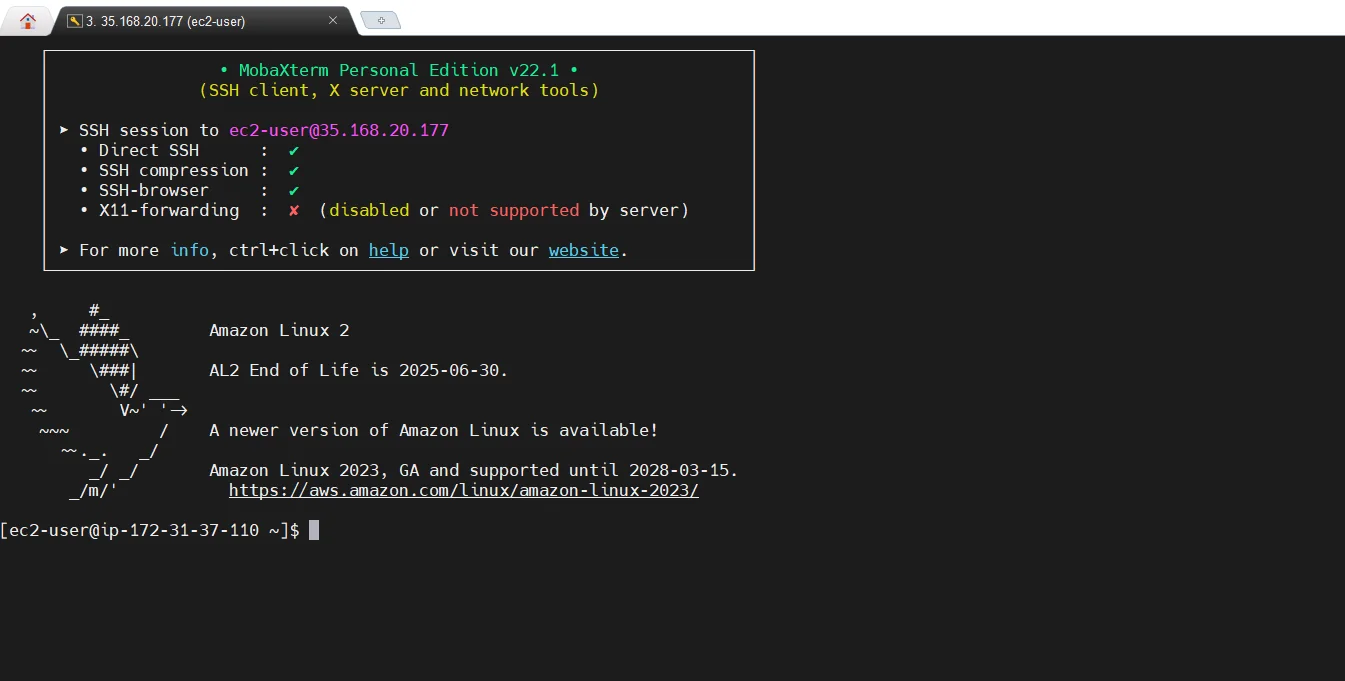

ssh to ec2 instance



install pip

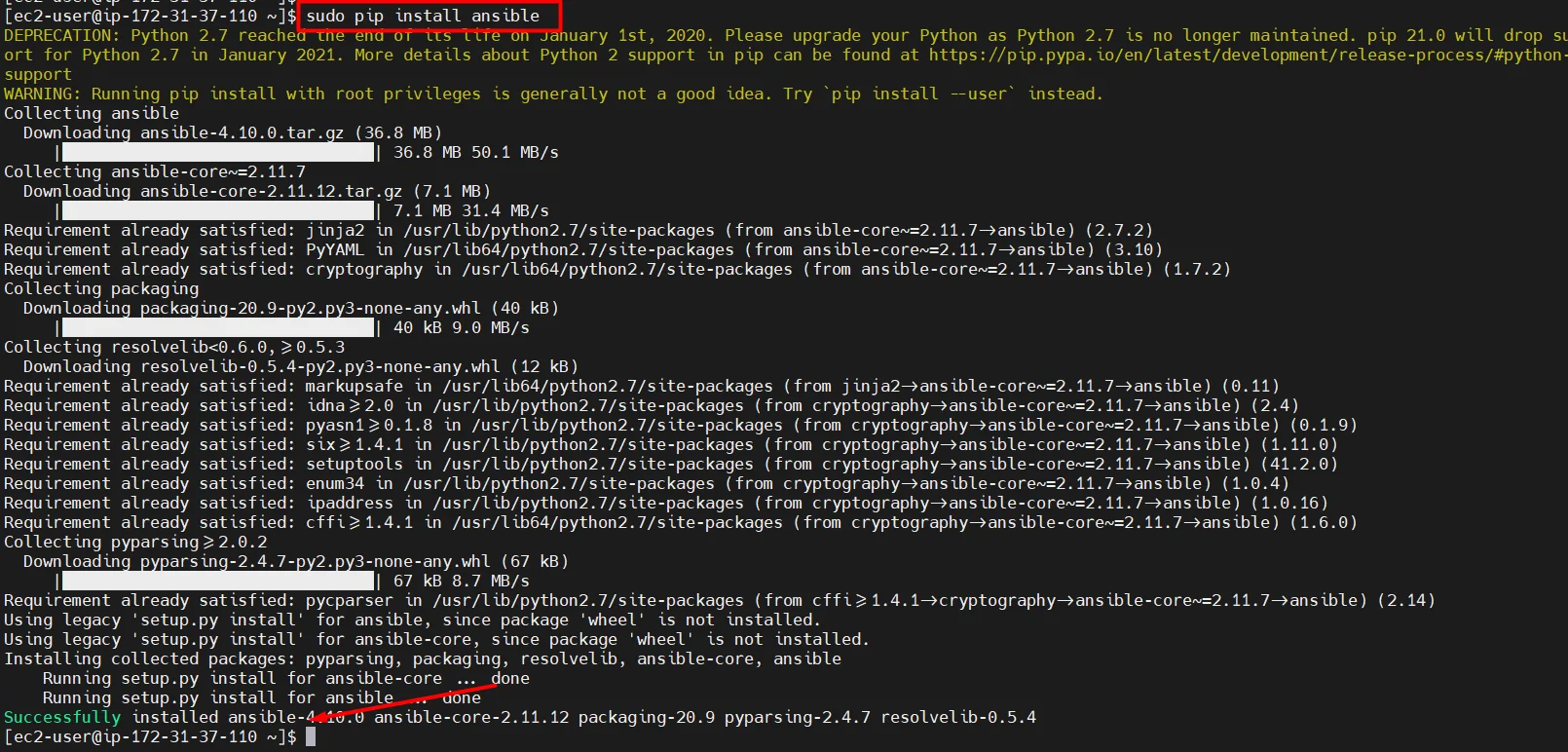

  • Install Ansible
sudo pip install ansible



install ansible

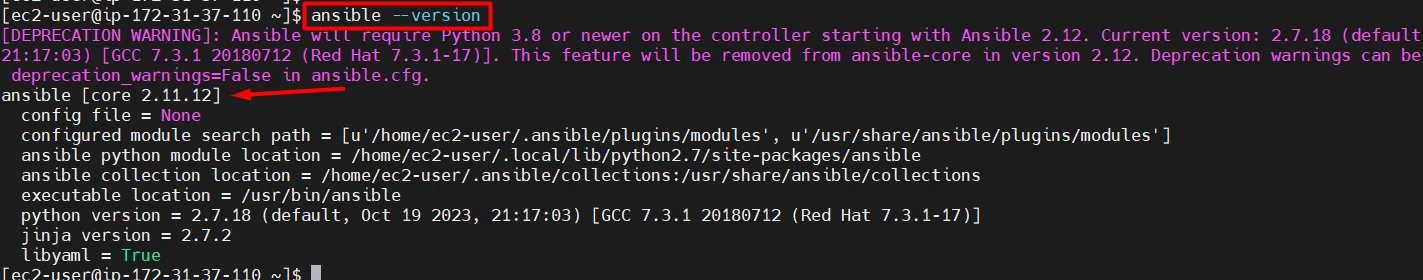

  • Verify the Ansible installation by checking Ansible version
ansible --version

check ansible version

Install git and clone ansible script.

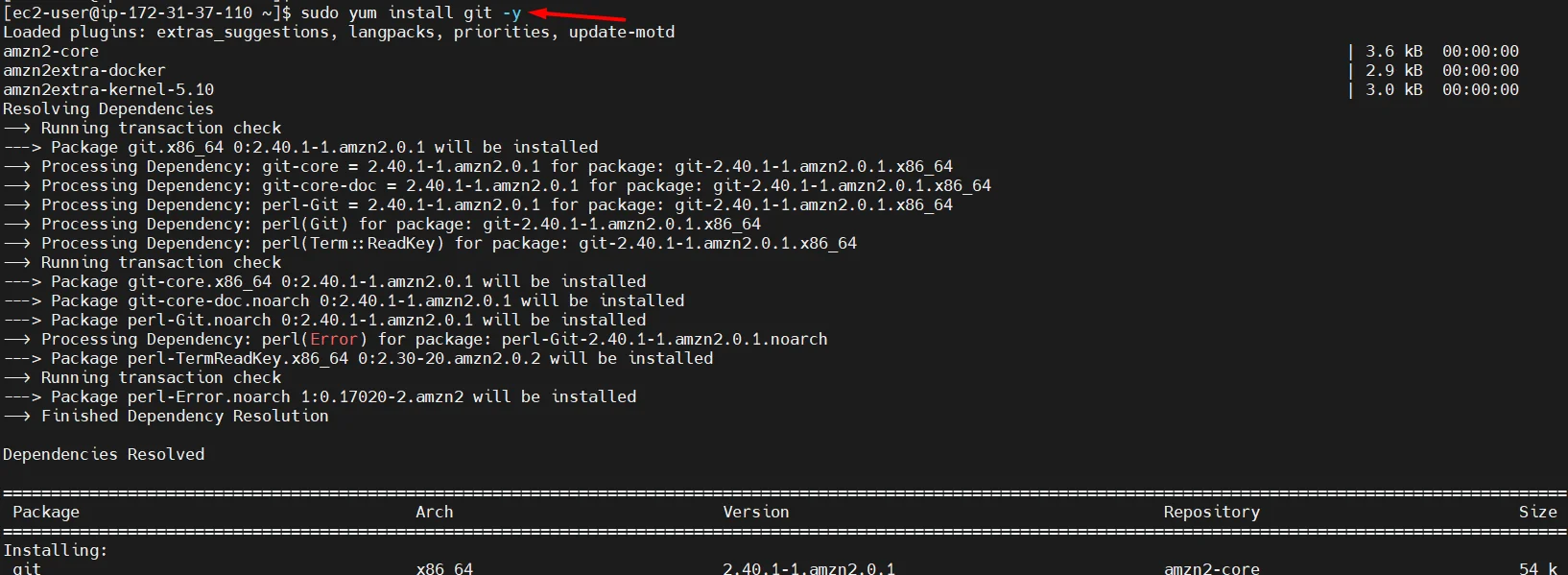

  • install git
sudo yum install git -y

install git



  • clone the git repo which contains ansible script.

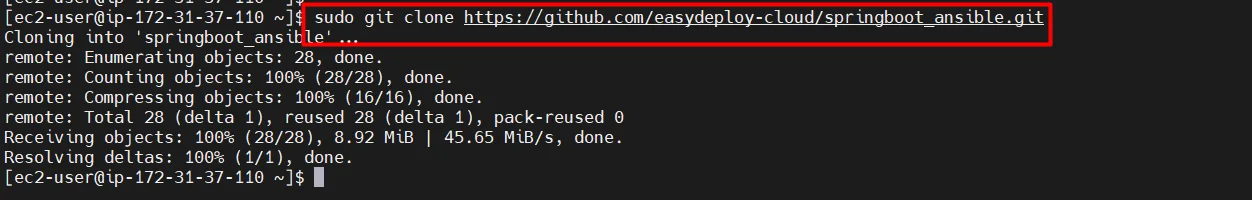

sudo git clone https://github.com/easydeploy-cloud/springboot_ansible.git

clone repo

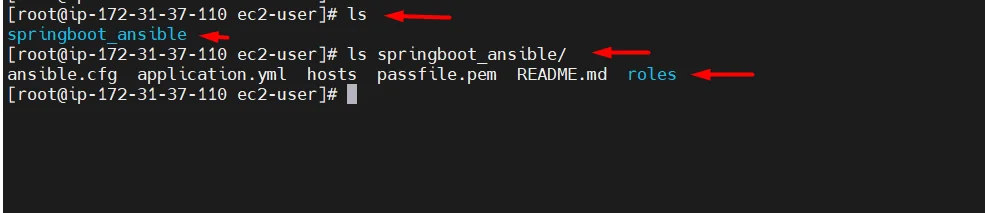

  • Use the list command to verify whether we got the script or not
ls
ls springboot_ansible

list files



Here you will see a list of 5 files and 1 directory

  • ansible.cfg             =  it contains the ansible configurations, we just need this file to run ansible.
  • application.yml   =  it contains the host information and order of roles, like which role needs to execute first.
  • hosts                        =  it contains a list of hosts as a group.
  • passfile.pem         =  it will contain your remote virtual machine’s private key.
  • README.md        =  it contains some execution commands for your reference.
  • roles                         =  it contains the list of roles.

Alter the script to make it run.

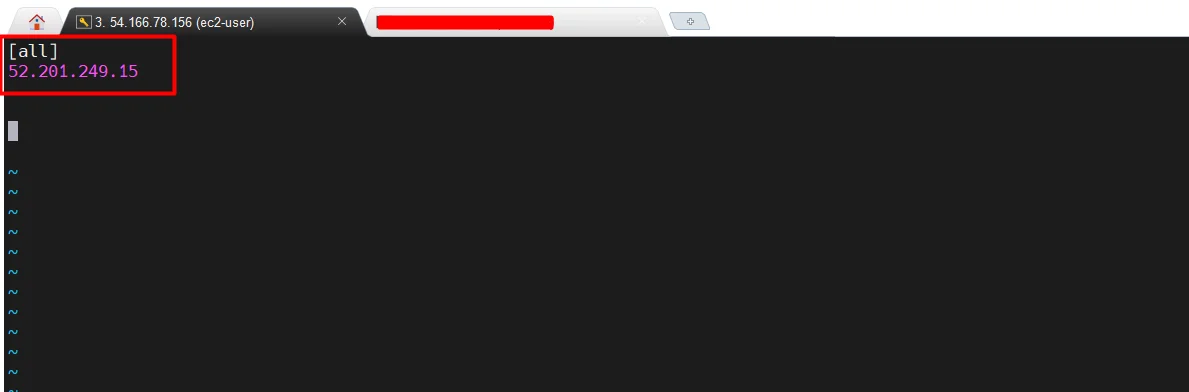

  • Open the “hosts” file and add your remote server’s public ip address under the group “[all]” .
cd springboot_ansible
ls
sudo vi hosts

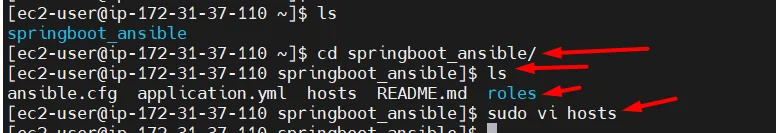

open host file



add host ip



  • Open the “application.yml” file and make sure your remote server’s username and host group, roles are correct.
sudo vi application.yml

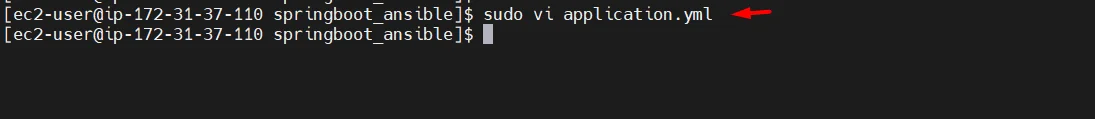

open application.yml file

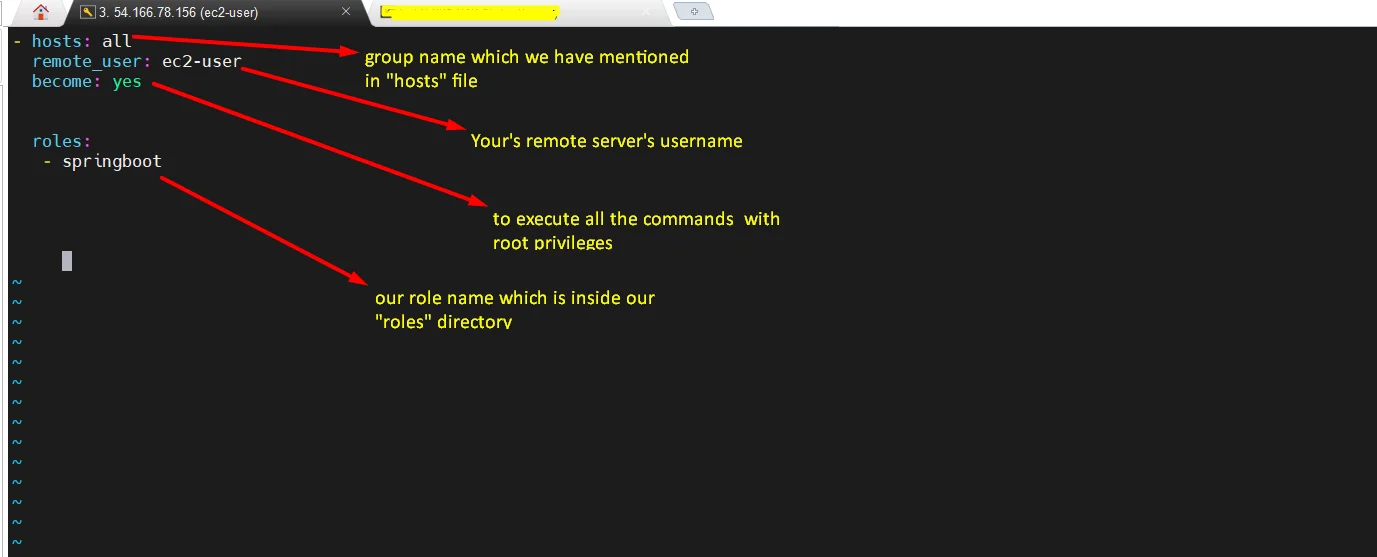

verify application.yml file content

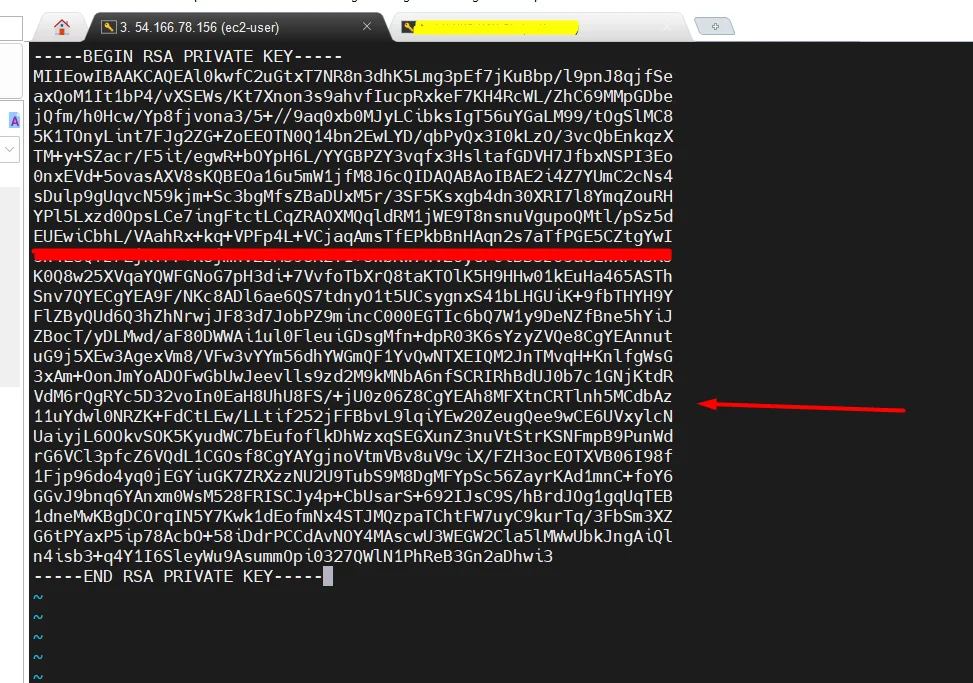

  • Open “passfile.pem” add your remote server’s private key and save.
sudo vi passfile.pem

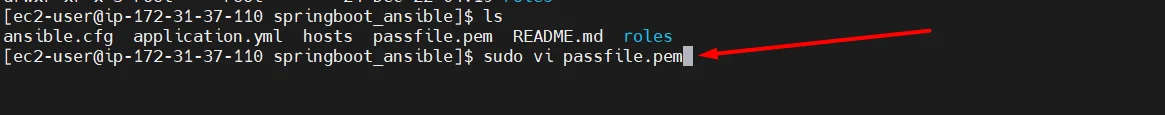

open .pem file



add private key

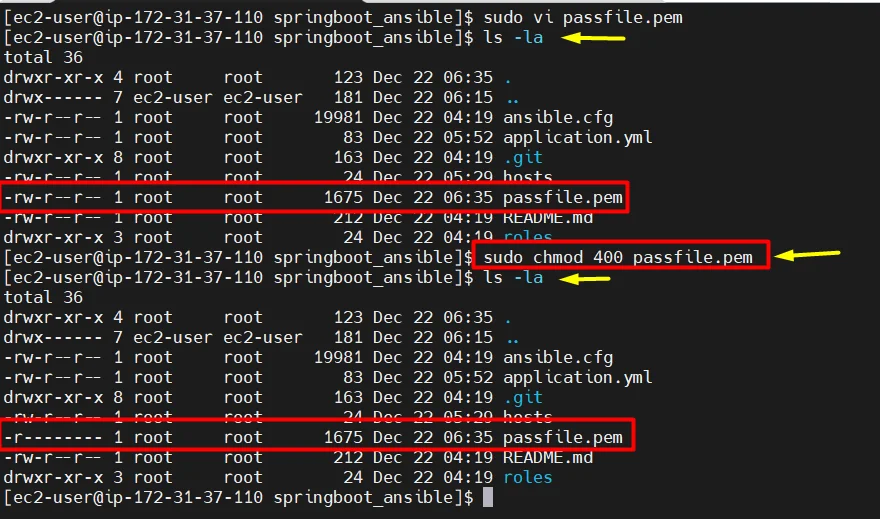

  • Change the permission for “passfile.pem” file
ls -la
sudo chmod 400 passfile.pem
ls -la

change permission for private key file



Run the Ansible playbook command.

  • This script will install Apache, java, and Maven, and also it will create separate Apache virtual host files with new users.
  • You can view the command in this path ” cat roles/springboot/tasks/main.yml
  • Pass the required values to the variables

1. username        = Username which you want to create in the remote server

2. domain name = Enter the domain name for your remote server, if you don’t have a domain use public IP instead.

ansible-playbook -i hosts -e "username=<username> domainname=<domainname> portno=8080" --private-key passfile.pem application.yml -vvv

Eg:
ansible-playbook -i hosts -e "username=basker domainname=techno.com portno=8080" --private-key passfile.pem application.yml -vvv

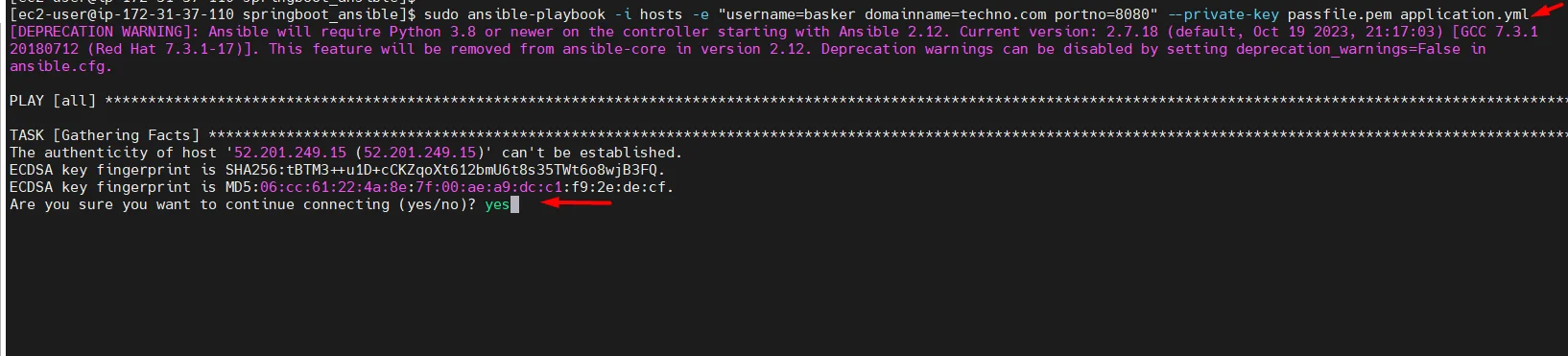

Run ansible playbook



  • Run the above command and wait until the script get completed.

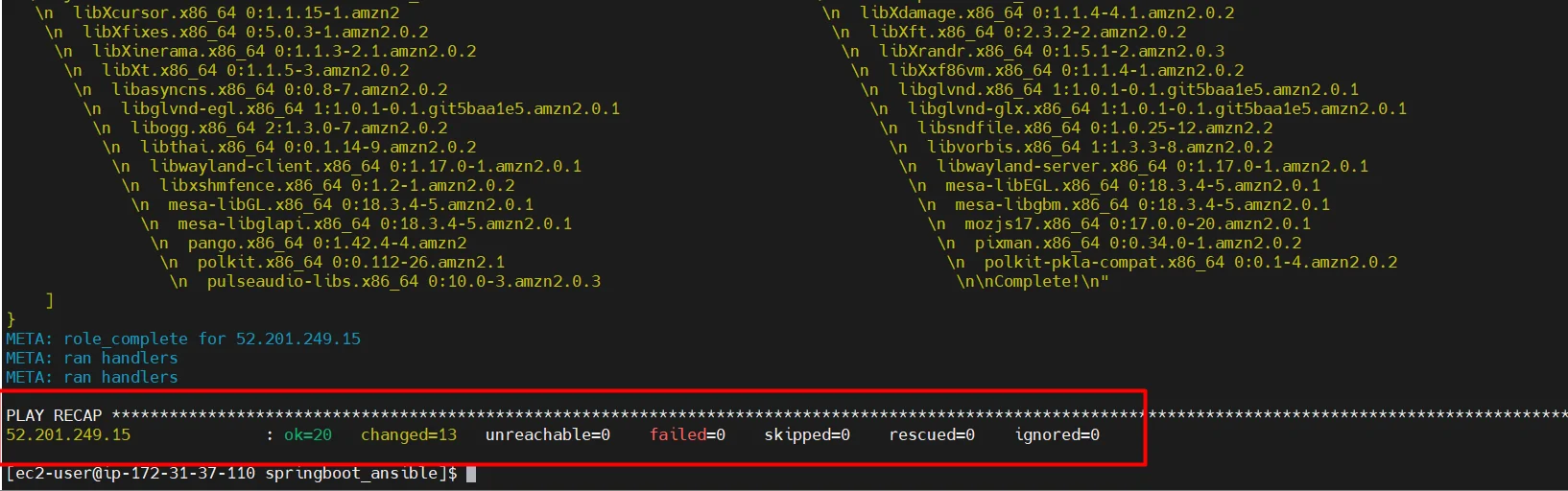

ansible playbook execution completed



Now we have successfully installed all the dependencies to run “spring boot” applications lets verify the dependencies on the remote server one by one.

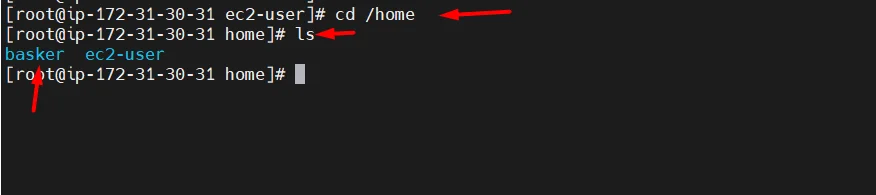

  • Check whether the user is created or not
cd /home
ls

check user



  • There will be an Apache virtual host file with a new user.
cd /etc/httpd/conf.d/virtualhost/
ls
cat techno.com.conf

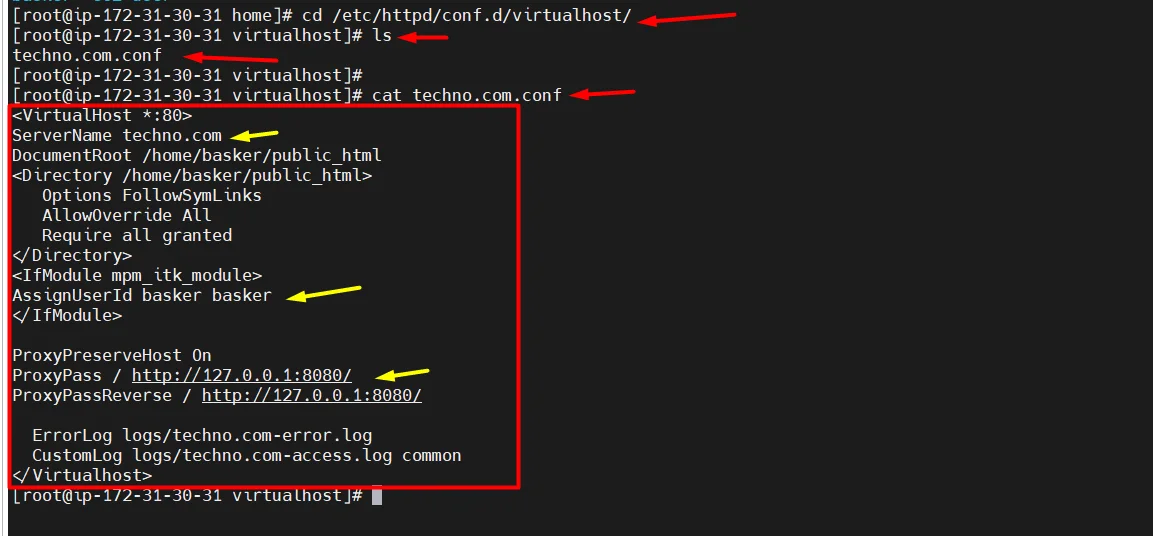

apache vhost file

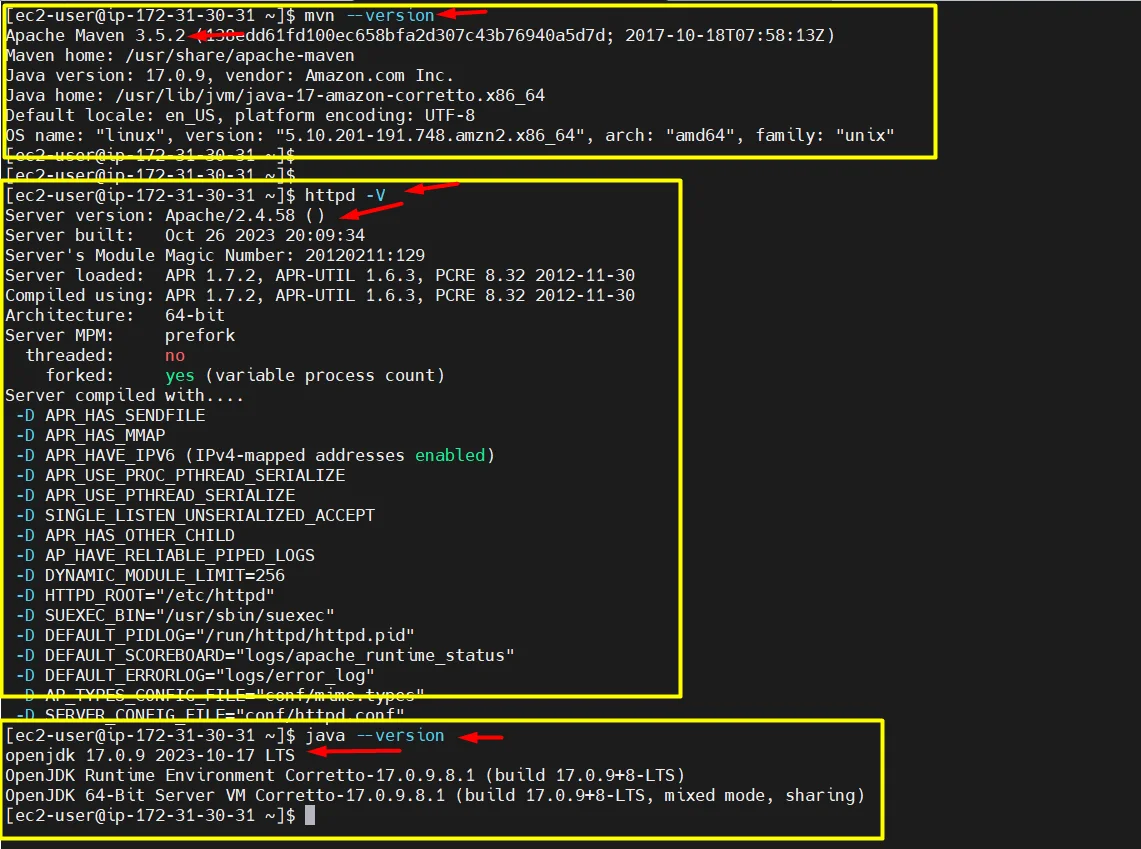

  • check the version of Maven, apache, java
mvn --version
httpd -V
java --version

check dependencies version

Run sample spring boot application

  • goto your application working directory, which is “/home/<username>/public_html
  • clone sample spring boot application source code from git.
sudo su
cd /home/basker/public_html
pwd
sudo git clone https://github.com/spring-guides/gs-spring-boot.git
ls
cd gs-spring-boot/initial/

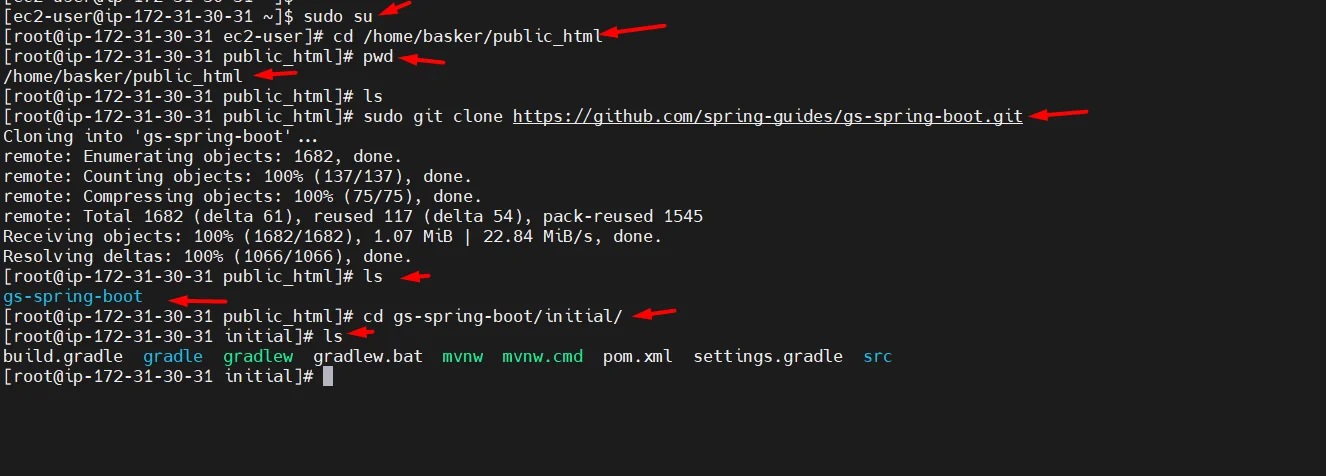

clone spring boot source code



  • Run your application using the below command
sudo mvn spring-boot:run

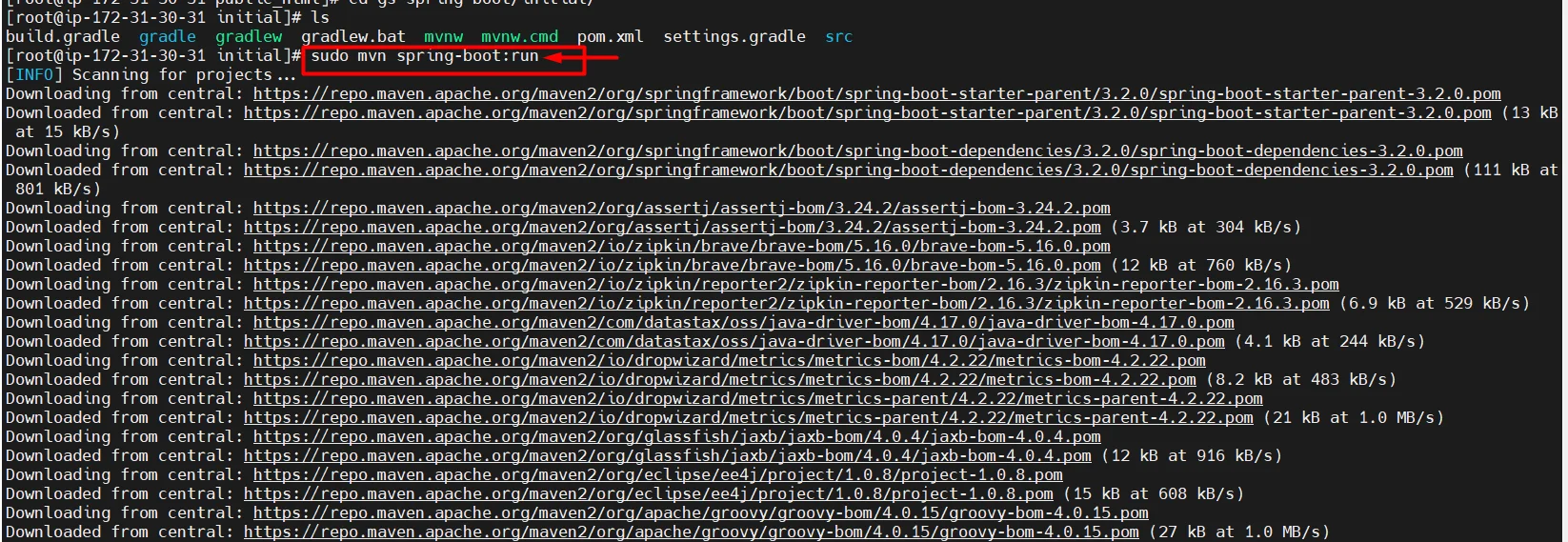

Run spring boot



check port

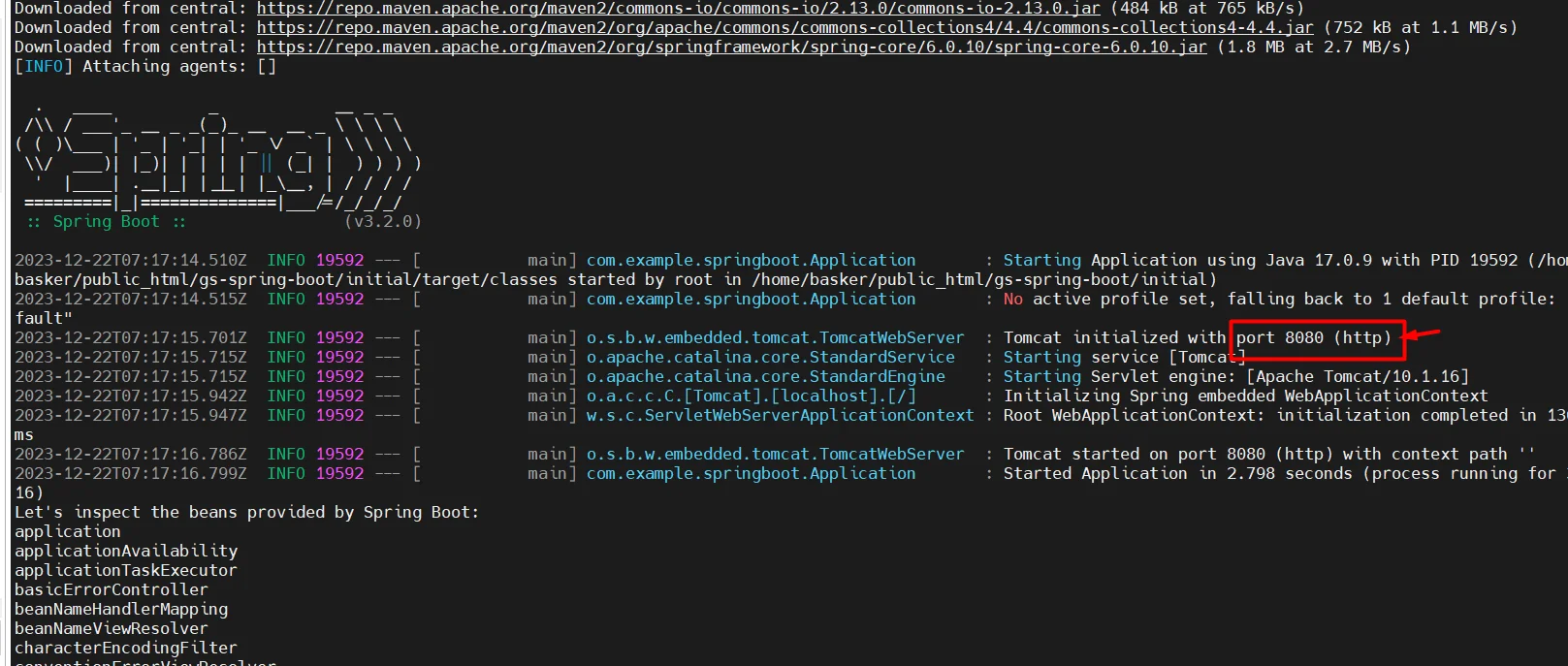

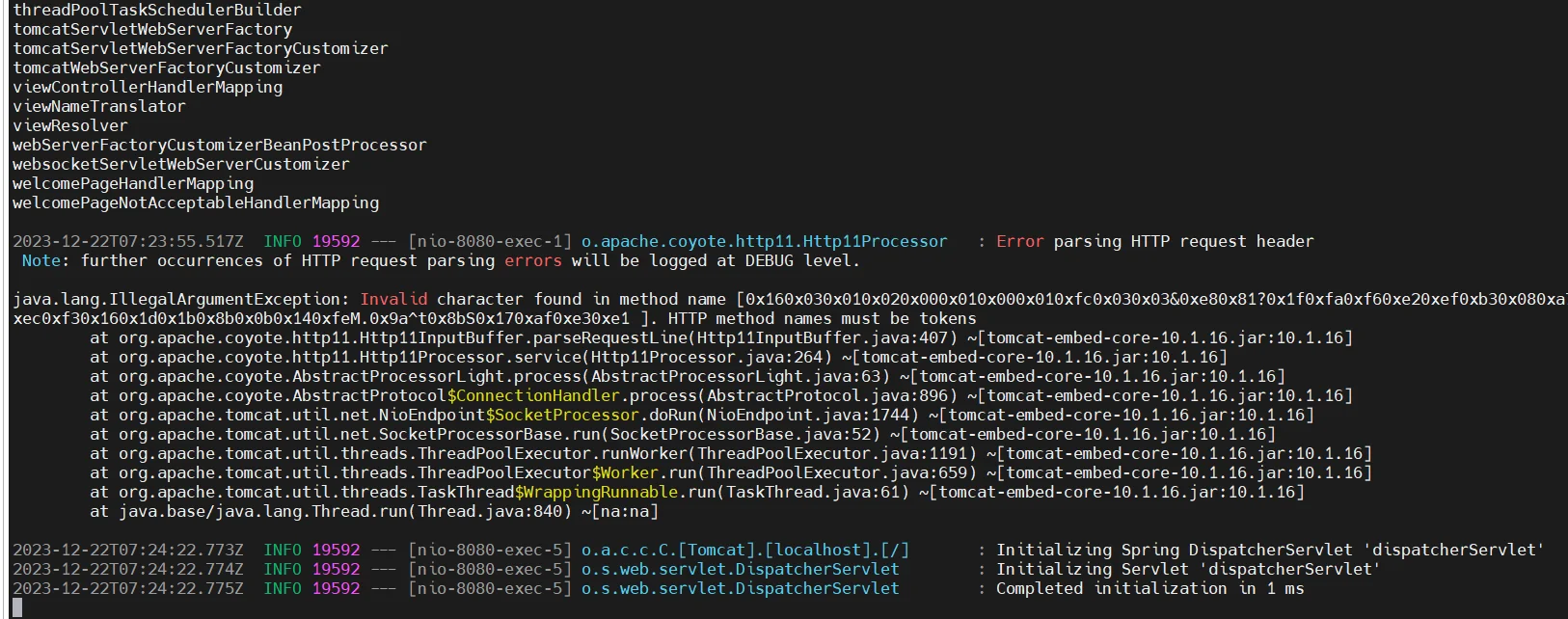

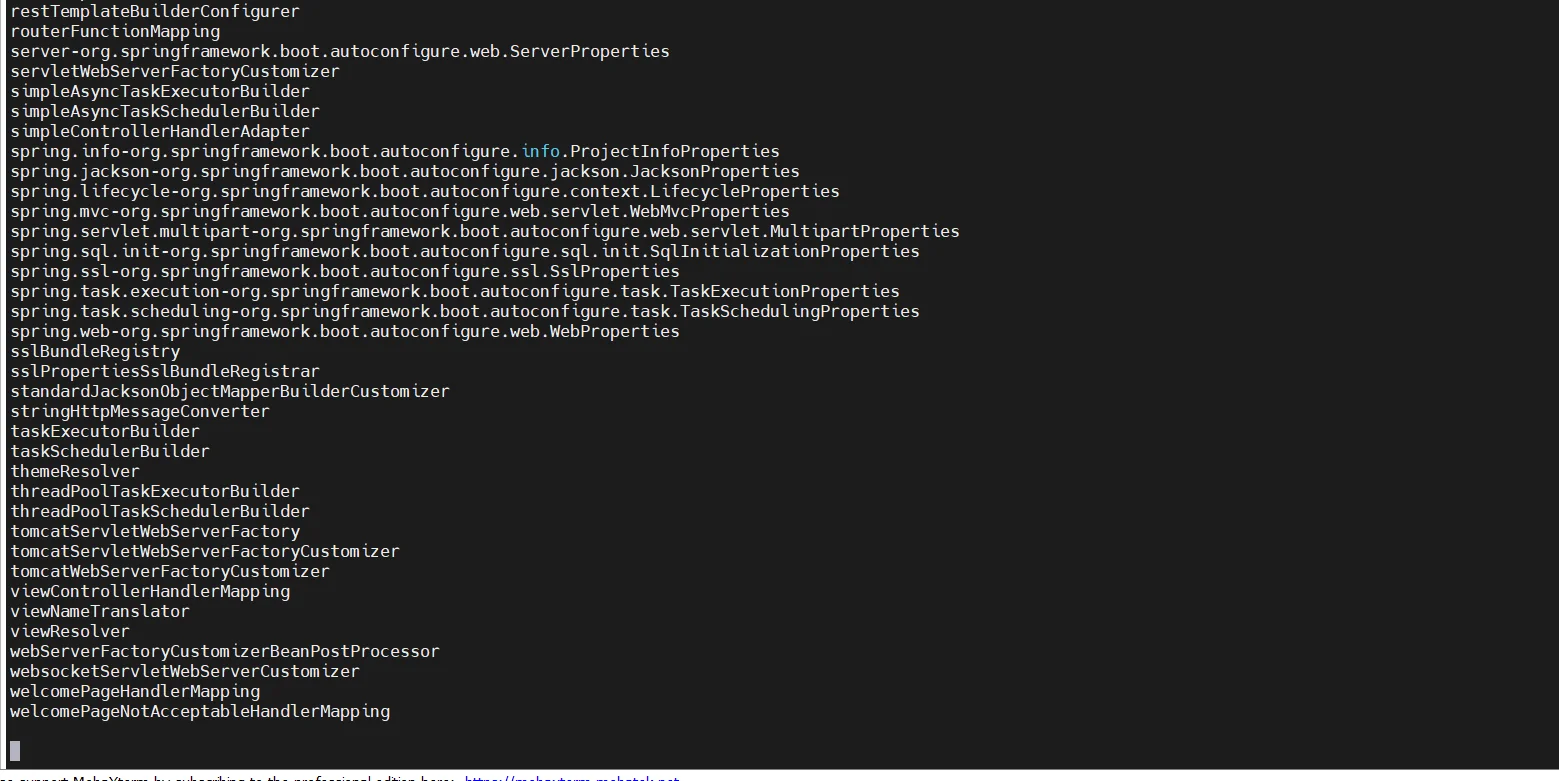

spring boot execution

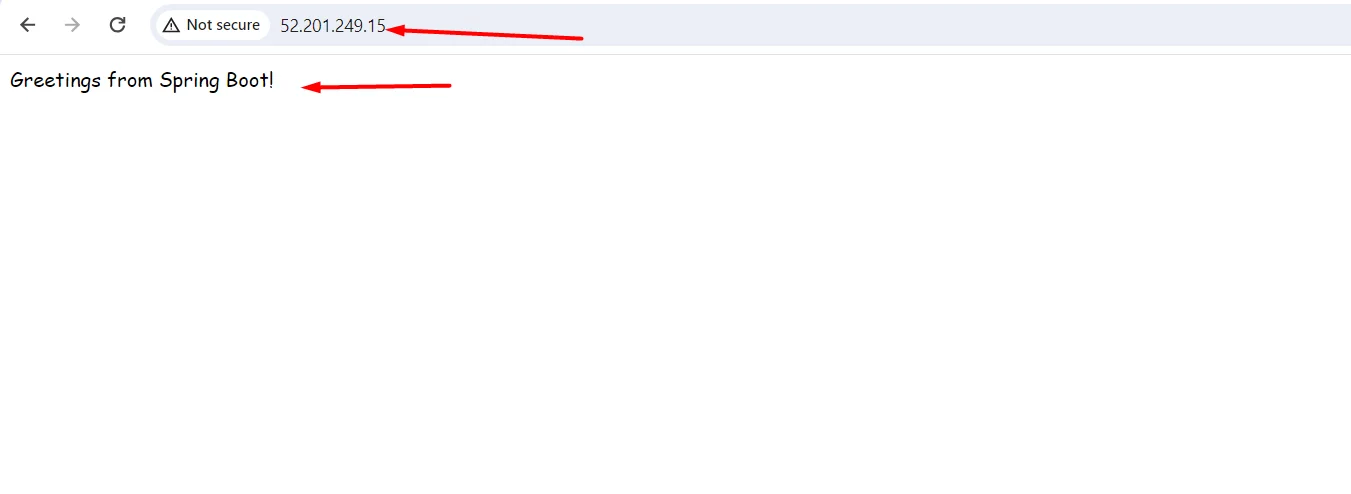

  • Now copy your remote server’s public IP and check on a browser with ports 8080 and 80.
http://<publicip>:8080
http://<publicip>:80

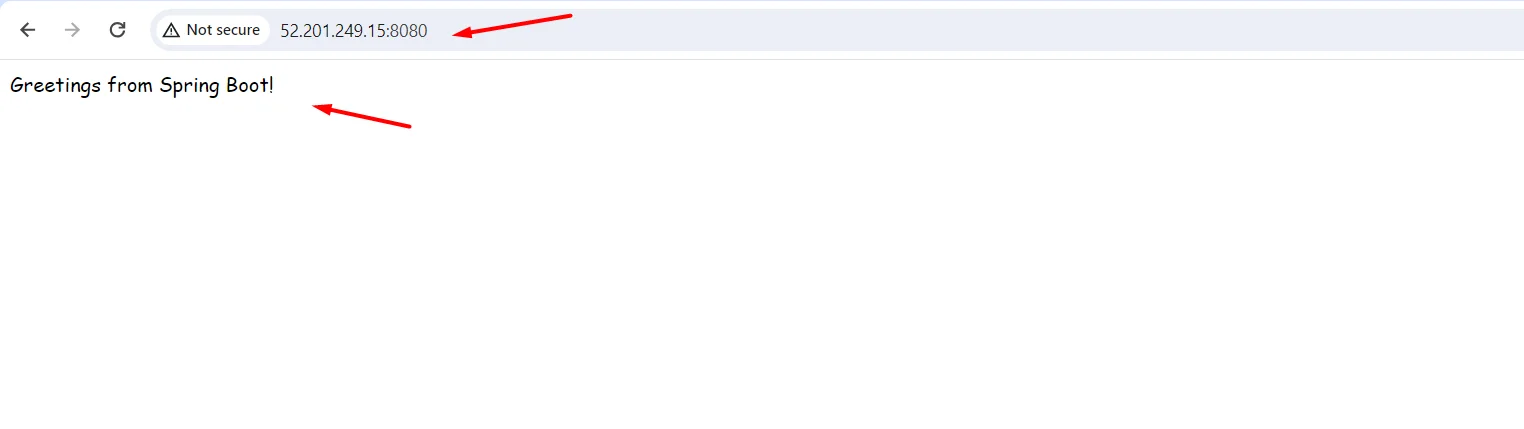

spring boot on port 8080



spring boot on port 80



  • Port “8080, 80” must be open in the server’s security group.
  • our application will run in both 8080 and 80 because we have enabled a proxy between 8080 and 80 in the “apache virtual host file”  so that, whatever traffic comes to 8080 will also come to 80.

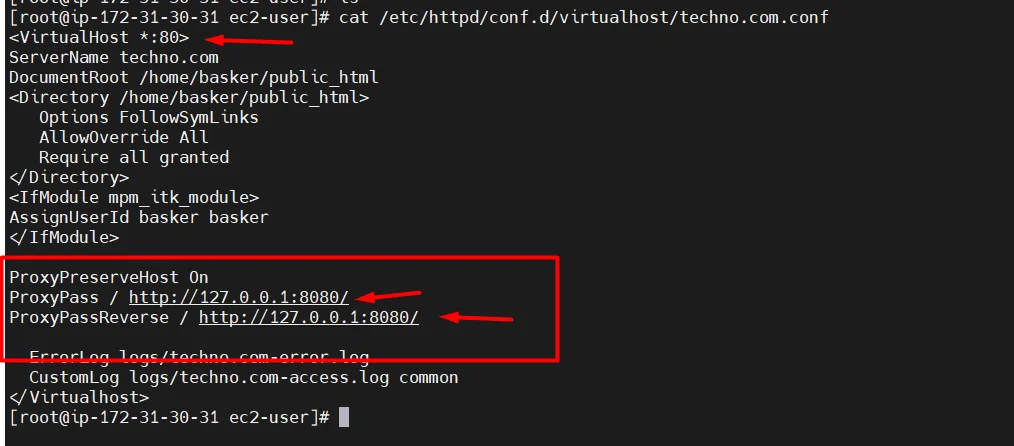

Here the proxy configurations



proxy configuration



You can also view the access log on the server.



spring boot access log



Now we have Successfully completed our spring boot application setup with Ansible.!!
